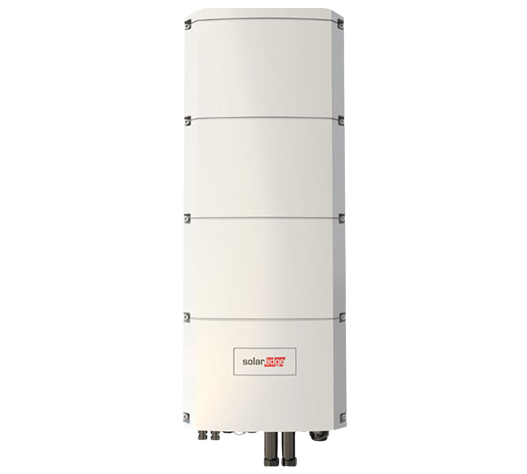

Home Battery LV 4.6 + SE5K-RWB48BFN4

The power packs of the Solar Edge Home Battery LV series are the ideal complement to the 3-phase RWB hybrid inverters. The unique optimizer concept ensures maximum safety and performance. And in combination with the SolarEdge Backup Interface, backup power is now also possible. The storage system can be expanded indefinitely and is reliable in any application. With up to 5 units, 23.0 kWh of usable capacity can be created. Even if these legs and bases are only mentioned as an option, they provide the safe distance from the ground that is often desired. They also make it possible to level out any unevenness for a secure stand. A clear practical recommendation from us too.

Product advantages:

• Unique optimizer concept

• Backup function (with backup interface)

• Can be expanded at any time

• Simple installation via SetApp

Product features System:

• AC power: 5.0 kW

• AC connection: 3-phase

• Communication: WLAN (antenna required), LAN, 2 x RS485

• Protection class: IP65

• Cooling: passive

• Dimensions: 907 x 316 x 192 mm (H x W x D)

• Weight: 37.0 kg

Product features Storage:

• Battery capacity (usable): 4.6 kWh

• Time window extension: unlimited

• Cascadable: up to 5 storage modules

• Cell chemistry: LFP

• Nominal voltage: 44.8 - 56.5 V

• Protection class: IP65

• Dimensions: 500 x 540 x 240 mm (H x W x D)

• Weight: 54.7 kg

• Cooling: passive

Conclusion:

Everything from a single source - a concept that has become much more important in times of constant updates and communication. Here in the version with backup.

Scope of delivery:

• 1 x SolarEdge SE5K-RWB48BFN4 (item 8251149)

• 1 x SolarEdge Inline Energy Meter (item 8248127)

• 1 x Home Battery - RWB inverter cable set (item 8251156)

• 1 x SolarEdge Home Battery Top Cover (item 8251154)

• 1 x SolarEdge Home Battery LV (item 8253414)
