HOME BATTERY 4,6 kWh MODULE
Product information "HOME BATTERY 4,6 kWh MODULE"
***Compatible with the 3-phase RWS Hybrid-WR (firmware update necessary) and the RWB series.***

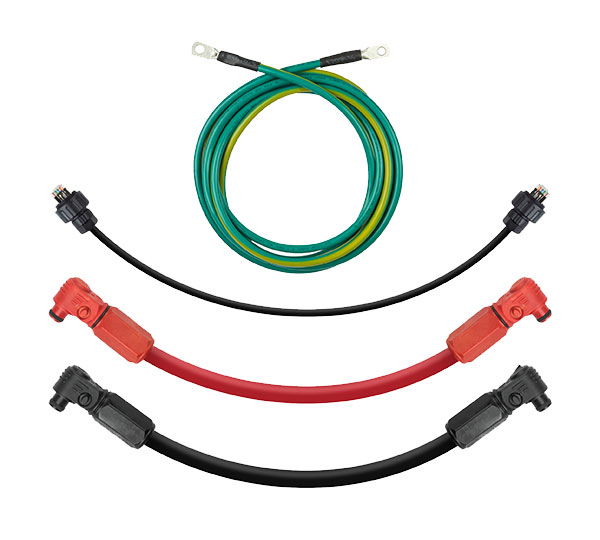

***Suitable connection cable for inverter and battery extension must be selected separately.***
Optimized storage solution for SolarEdge Home Hub Inverter - Three Phase with Backup
- Usable Energy (100% depth of discharge): 4600 Wh
- DC coupled battery featuring superior overall system efficiency, generating more energy to store and use for on-grid and backup (Backup applications are subject to local regulation and may require additional components and firmware upgrade) power application
- Integrates seamlessly with the complete SolarEdge Home ecosystem, offering a single source for warranty, support and training, to streamlined logistics & operations
- Includes enhanced safety features for battery protection
- Scalable solution that enables to stack up multiple battery modules per inverter for increased capacity (up to 23 kWh)
- Solar, storage, EV charging, and smart devices all monitored and managed by a single app for optimized production, consumption, and backup (Backup applications are subject to local regulation and may require additional components and firmware upgrade) power
- Simple plug and play installation, with automatic SetApp-based configuration
Technical details
| Protection degree | IP65 |
|---|---|
| Min. temperature ambient (°C) | -10 |
| Capacity extendable later | yes without restriction |
| Usable capacity (kWh) | 4.60 |
| Battery cell chemistry | LFP |
| Battery voltage | Low Voltage |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | SolarEdge |
| Manufacturer item name | BAT-05K48 |
| Hazardous goods class | 9 |
| Hazardous goods Weight (net) (kg) | 54.700 |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 58.000 |
|---|---|
| Length incl. packaging (cm) | 74.00 |
| Pal. dim. LxBxH (mm) | 1200x800x2184 |
| Height incl. packaging (cm) | 34.00 |
| Amount per Pallet | 12 |
| Pack. material | cardboard box |
| Amount p. Cont. | 396 |
| Amount Pal. p. Cont. | 33 |
| Width incl. packaging (cm) | 60.00 |
| Width without packaging (mm) | 540.00 |
|---|---|
| Weight without packaging (kg) | 54.700 |
| Length without packaging (mm) | 500.00 |
| Height without packaging (mm) | 240.00 |
| Warranty provider | SolarEdge |
|---|---|
| Product warranty (yr) | 10 |
Accessories
