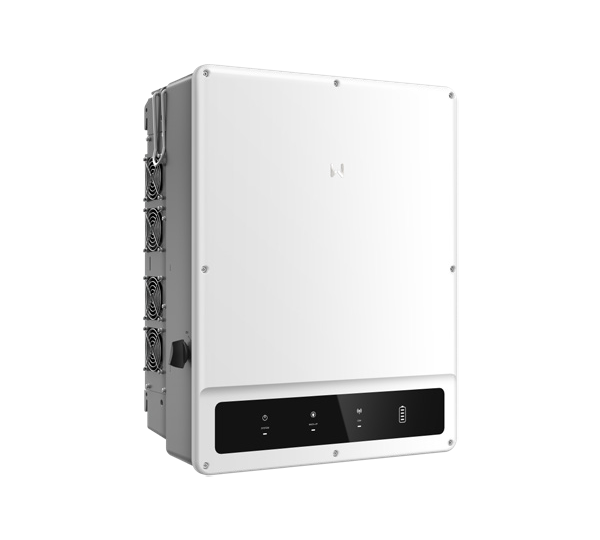

GW40K-ET-10 (DC SPD 1+2, AFCI, WIFI/LAN)
Product information "GW40K-ET-10 (DC SPD 1+2, AFCI, WIFI/LAN)"
When connecting multiple devices, the EZlink 3000 is required as a control unit.
The Goodwe STS box must be added to switch to backup power mode.
Compatible with the Lynx C storage units.
Not compatible with the Lynx C 60K storage unit.
The new power classes of the Goodwe ET hybrid series with 40/50 kW are clearly aimed at commercial and industrial applications. The corresponding equipment with up to 4 MPP trackers, high input currents, overvoltage protection and AFCI creates the necessary flexibility. The system can be used both in parallel with the grid and independently of the grid and can also be connected in parallel. Goodwe provides the large ETs with the Lynx C Commercial Storage in various capacity versions. This means that various scenarios such as self-consumption, peak shaving, time-of-use and grid support can be implemented with the system. Combined with the STS box (Static Transfer Switch), the usual reliable switching to UPS level is also provided in backup operation.
Product advantages:
• Hybrids in new, attractive performance classes
• Up to 42 A input current per MPPT
• Overvoltage protection DC Type 1+2 / AC Type 2 integrated
• WIFI-LAN dongle included in delivery
Product features:
• AC power: 40 kW
• Mains connection: 400V, 3-phase
• Number of MPPTs: 3
• DC input current per MPPT: 42+32+42 A
• Memory connections: 1
• Communication: Wifi, LAN, 4G, RS485
• Protection class: IP66
• Cooling: active
• Dimensions: 520 x 660 x 260 mm (W x H x D)
• Weight: 62.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Interface 1 | W-Lan |
| Total number of string inputs | 6 |
| Max. short circuit current (A) total | 152.00 |
| Protection degree | IP66 |
| Interface 2 | RS485 |
| Start input voltage (V) | 200 |
| Number of independent MPPT (pcs) | 3 |
| AC nominal power (kW) | 40.00 |
| Min. temperature ambient (°C) | -35 |
| Charging voltage (V) | 800 |
| Max. output current (A) | 60.60 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Battery connection | DC |
| Max. input current DC (A) total | 116.00 |
| European efficiency (%) | 97.50 |
| Display | w/o display |
| Charging current (A) | 100.00 |
| Max. generator power DC (kWp) | 60.00 |
| MPP min. voltage range input (V) | 200.00 |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Max. AC power (kVA) | 40.00 |
| MPP max. voltage range input (V) | 800.00 |
| Max. short circuit current per MPPT (A) | 55\/42\/55 |
| Max. input current per MPPT (A). | 42\/32\/42 |
| Arc Fault Circuit Interrupter | yes |
| Min. voltage range input (V) | 620 |
| Surge protection DC | type 1 and type 2 |
| Backup system full | yes |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer item name | GW40K-ET-10 |
| Manufacturer | GoodWe |
| Weight incl. packaging (Kg) | 72.500 |
|---|---|
| Height incl. packaging (cm) | 88.00 |
| Amount per Pallet | 4 |
| Length incl. packaging (cm) | 39.00 |
| Width incl. packaging (cm) | 66.00 |
| Pack. material | cardboard box |
| Pal. dim. LxBxH (mm) | 1350x920x129 |
| Pal. weight (kg) | 303.00 |
| Width without packaging (mm) | 520.00 |
|---|---|
| Weight without packaging (kg) | 62.000 |
| Length without packaging (mm) | 260.00 |
| Height without packaging (mm) | 660.00 |
| Warranty provider | GoodWe |
|---|---|
| Product warranty (yr) | 5 |
