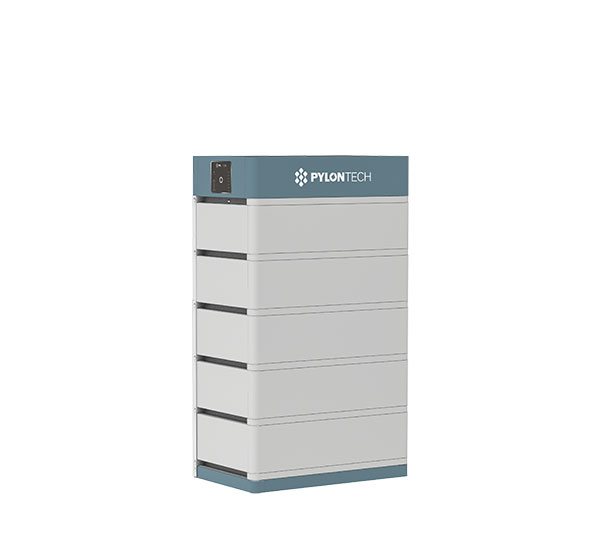

Force-H1 16.9
Product information "Force-H1 16.9"
DANGER:
UN 3480 Lithium Ion Batteries, 9, (E)
Transport category 2
Compact, reliable and powerful - these are the Force H1 + H2 high-voltage storage systems from Pylontech. The power packs always find a place in the proven and efficient stacking design. With their expandable battery modules with up to 23.6 kWh usable capacity, they are ideal for use in the home.
Product advantages:
• Efficient, compact stacking design
• Compatible with SMA, Kostal, Sungrow, Goodwe, Sofar
Product features memory:
• Battery capacity (usable): 16.9 kWh
• Time window extension: up to 2 years
• Cell chemistry: LFP
• Rated Voltage: 240.0V
• Protection class: IP55
• Dimensions: 1040 x 600 x 380 mm (HxWxD)
• Weight: BMS + base: 14.0 kg, 5 x memory 35.0 kg each
Scope of delivery:
• 1 x Pylontech Battery Management System (Item 8252522)
• 5 x Pylontech Force-H1 memory module (item 8250255)
Downloads
-
FORCE-H1 FC0500-40S-V2 BATTERY MANAGEMENT SYSTEM8252522
-
48V FORCE-H1 FH48074 HV (3,5 kWh)8250255
Technical details
| Nominal voltage DC (V) | 240.00 |
|---|---|
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 16.90 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Hazardous goods class | 9 |
| Hazardous goods packaging type | 4G |
| Manufacturer item name | FORCE-H1 FH48074*FORCE-H1 FC0500-40S-V2 |
| Manufacturer | Pylontech |
| Hazardous goods Weight (net) (kg) | 189.000 |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 225.000 |
|---|
| Weight without packaging (kg) | 189.000 |
|---|
