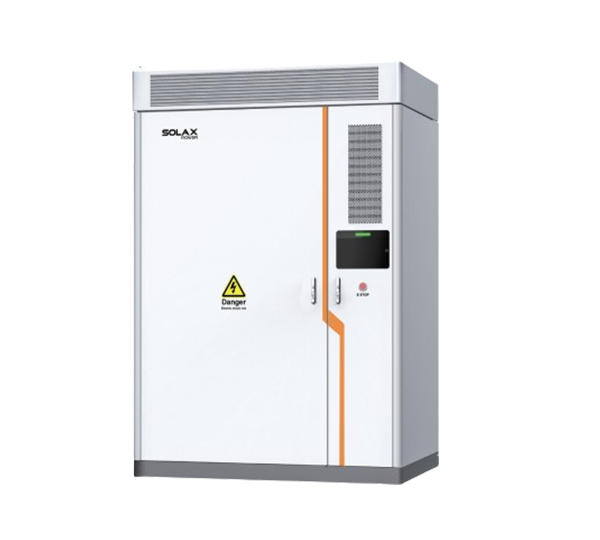

ESS-Trene
Product information "ESS-Trene"
WARNING:
UN 3481 Lithium-ion batteries, 9, (E)
Transport category 2
The manufacturer's specifications regarding installation, assembly and location must be observed.
For larger commercial facilities, Solax offers a new and highly attractive solution with the ESS-Trene. With 100 kW charging power and 215 kWh storage capacity, the system is the ideal system component for these system sizes. The application possibilities extend into the MWh range as it can be cascaded in many ways. The integrated, self-developed EMS1000 supports a wide range of scenarios such as peak shaving, demand response, virtual power plants (VPP) and frequency control.
Product advantages:
• Ideal for a wide range of C&I applications
• Can be cascaded in many ways
• 4-stage fire protection concept
• integrated EMS1000 logger
Product features:
• AC power: 100.0 kW
• AC connection: 400 V, 3-phase
• Overvoltage protection: AC Type 2
• Battery capacity (usable): 193.5 kWh
• Cell chemistry: LFP
• Communication: 8 x RS485, 3 x CAN, 4G (incl. antenna), 4 x Ethernet
• Interfaces: 18 x DI, 8 x DO
• Protection class: IP55
• Cooling: active air cooling
• Dimensions: 2420 x 1680 x 1200 mm (HxWxD)
• Weight: total 2800.0 kg (battery module 115 kg each)
Conclusion:
Due to its performance and capacity, the ideal system component for many C&I applications.
Technical details
| Usable capacity (kWh) | 215.00 |
|---|---|
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Max. output current discharging (A) | 140.00 |
| Min. temperature ambient (°C) | -30 |
| Protection degree | IP55 |
| Max. output current charging (A) | 140.00 |
| Discharging power (kW) | 100.00 |
| Charging power (kW) | 100.00 |
| Nominal voltage DC (V) | 768.00 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Hazardous goods Weight (net) (kg) | 1296.000 |
| Hazardous goods class | 9 |
| Manufacturer item name | TRENE-P100B215I |
| Hazardous goods description | LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 2830.000 |
|---|---|
| Amount per Pallet | 1 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 172.40 |
| Pal. dim. LxBxH (mm) | 1724x1260x2450 |
| Width incl. packaging (cm) | 124.40 |
| Pal. weight (kg) | 2830.00 |
| Height incl. packaging (cm) | 242.20 |
| Height without packaging (mm) | 1200.00 |
|---|---|
| Length without packaging (mm) | 1680.00 |
| Weight without packaging (kg) | 2800.000 |
| Width without packaging (mm) | 2420.00 |
| Warranty provider | SolaX Power |
|---|
