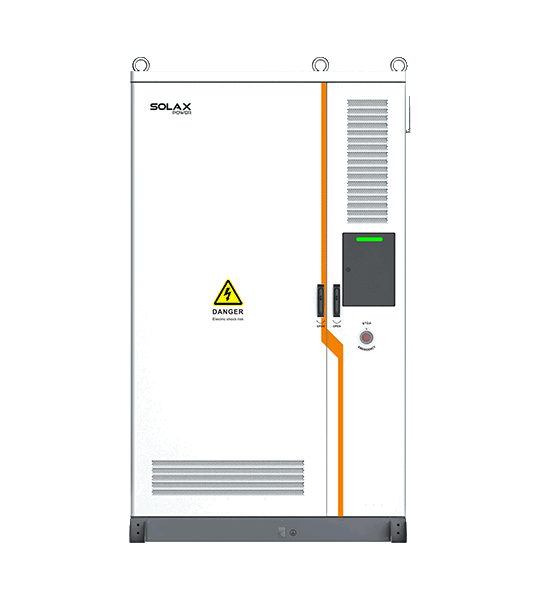

ESS-Trene, liquid cooled
Product information "ESS-Trene, liquid cooled"
CAUTION:
UN 3481 Lithium ion batteries contained in equipment / Transport hazard class 9 / (E)
Packing Group II
The manufacturer's specifications regarding installation, assembly, and location must be observed.
Due to the high total weight due to complete pre-assembly, suitable vehicles must be used for unloading and transport.
Certification for DE (VDE 4110) expected in August 2025.
For larger commercial facilities, Solax offers a new and highly attractive solution with the ESS-Trene. With 125 kW charging capacity and 261 kWh storage capacity, this liquid-cooled version of the system is the ideal system component for these sizes. Widely cascadable, the application possibilities extend into the MWh range. The integrated, proprietary EMS1000 Pro supports a wide variety of scenarios, from peak shaving and demand response to virtual power plants (VPPs) and frequency control.
Product advantages:
• Ideal for a wide range of C&I applications
• Multiple cascadable configurations
• 4-stage fire protection concept
• Integrated EMS1000 Pro logger
• Efficient liquid cooling system
Product features:
• AC power: 125.0 kW
• AC connection: 400 V, 3-phase
• Surge protection: AC Type 2
• Battery capacity (usable): 261.0 kWh
• Cell chemistry: LFP
• Communication: 8 x RS485, 3 x CAN, 4G (including antenna), 4 x Ethernet
• Interfaces: 18 x DI, 8 x DO
• Protection class: IP55
• Cooling: Liquid cooling
• Dimensions: 2355 x 1350 x 1350 mm (HxWxD)
• Weight: Total: 2810.0 kg (battery module 115 kg each)
Conclusion:
Thanks to its performance and Capacity is the ideal system component for many C&I applications.
Technical details
| Cell chemistry | LFP |
|---|---|
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Nominal voltage DC (V) | 400.00 |
| Usable capacity (kWh) | 234.90 |
| Min. temperature ambient (°C) | -30 |
| Protection degree | IP55 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| UN No. | 3481 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Hazardous goods class | 9 |
| Manufacturer item name | TRENE-P125B261L-E |
| Hazardous goods description | LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT |
| Hazardous goods packaging type | 4G |
| Hazardous goods Weight (net) (kg) | 1456.000 |
| Height incl. packaging (cm) | 235.50 |
|---|---|
| Width incl. packaging (cm) | 135.00 |
| Amount per Pallet | 1 |
| Weight incl. packaging (Kg) | 2900.000 |
| Length incl. packaging (cm) | 135.00 |
| Height without packaging (mm) | 2355.00 |
|---|---|
| Weight without packaging (kg) | 2810.000 |
| Width without packaging (mm) | 1350.00 |
| Length without packaging (mm) | 1350.00 |
| Warranty provider | SolaX Power |
|---|
