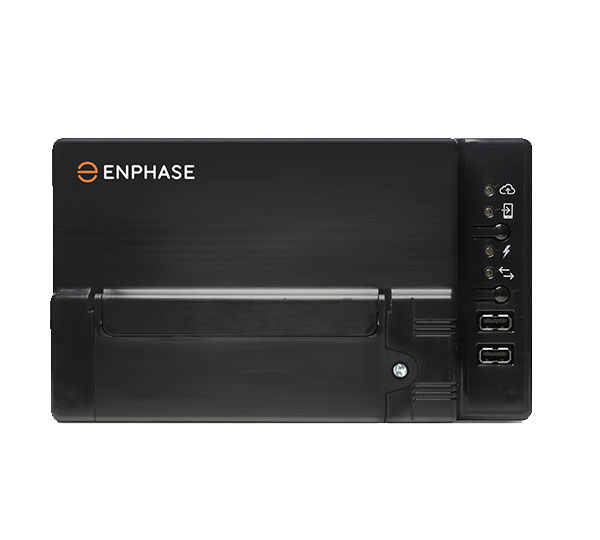

ENVOY-S STD COMMUNICATION GATEWAY
communications gateway
Art. no.
8234599
Manufacturer No.
ENV-S-WB-230
Product details
Product information "ENVOY-S STD COMMUNICATION GATEWAY"
Communication gateway Enphase Envoy S with basic monitoring of photovoltaic production (+/- 5%).
Hardwired (230 VAC or 400Y/230 VAC, 50 Hz. Max 20 A over current protection required)
Compatible with the microinverters M215, M250 and IQ7.
Smart:
- Enables web-based monitoring and control
- Bidirectional communications for remote upgrade
Simple:
- Easy system configuration using Enphase Installer Toolkit™ mobile app
- Flexible networking with Wi-Fi, Ethernet, or mobile
Reliable:
- Designed for installation indoors or in an outdoor enclosure
Hardwired (230 VAC or 400Y/230 VAC, 50 Hz. Max 20 A over current protection required)
Compatible with the microinverters M215, M250 and IQ7.
Smart:
- Enables web-based monitoring and control
- Bidirectional communications for remote upgrade
Simple:
- Easy system configuration using Enphase Installer Toolkit™ mobile app
- Flexible networking with Wi-Fi, Ethernet, or mobile
Reliable:
- Designed for installation indoors or in an outdoor enclosure
Technical details
| Display | w/o display |
|---|
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85176100 |
| Manufacturer | Enphase |
| Manufacturer item name | ENV-S-WB-230 |
| Pal. dim. LxBxH (mm) | 1200x800x1440 |
|---|---|
| Amount per Pallet | 12 |
| Weight incl. packaging (Kg) | 1.170 |
| Weight without packaging (kg) | 0.500 |
|---|---|
| Length without packaging (mm) | 213.00 |
| Width without packaging (mm) | 126.00 |
| Height without packaging (mm) | 45.00 |
| Product warranty (yr) | 5 |
|---|---|
| Warranty provider | Enphase |
