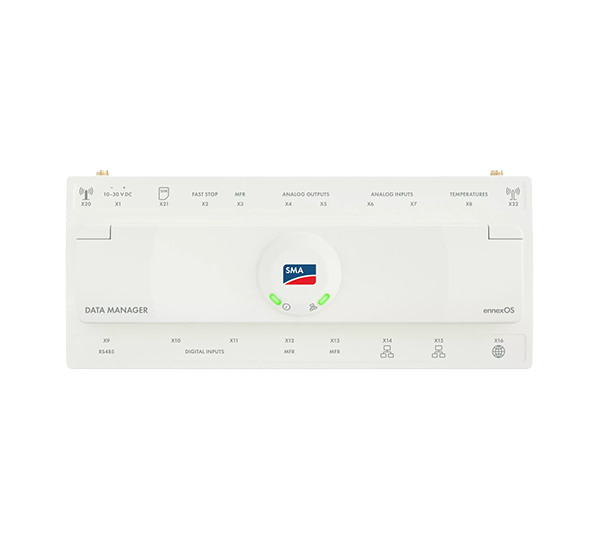

Data Manager M (EDMM-20)
Product information "Data Manager M (EDMM-20)"

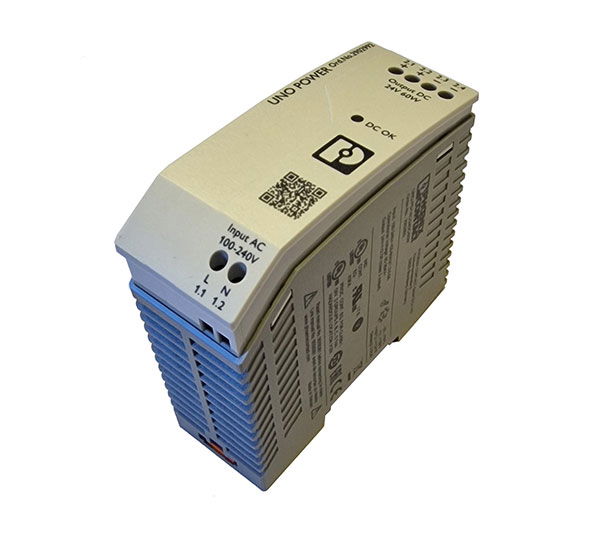

The external power supply unit (item 8220446) must be ordered separately
The new SMA Data Manager M is the central core of system communication in commercial installations. The new processor provides plenty of CPU power for all requirements. Whether networking with the direct marketer, control interfaces to the utility company, integration of storage systems or preparation for dynamic grid tariffs.
Product features:
• Inverter connection: RS485
• Number of RS485 ports: 2
• Max. participants: 50
• Interfaces: 10 x DI, 1 x RSD, 5 x MFR, 4 x AI, 4 x AO, 2 x PT100
• Communication: LAN, WLAN
• Mains connection: external power supply unit (to be ordered separately)
• Mounting: Top-hat rail, wall
• Protection class: IP20
• Dimensions: 216 x 90 x 68 mm (W x H x D)
• Weight: 0.4 kg
Technical details
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer item name | SMA DATA MANAGER M |
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85371098 |
| Weight incl. packaging (Kg) | 0.855 |
|---|---|
| Height incl. packaging (cm) | 12.50 |
| Width incl. packaging (cm) | 20.00 |
| Length incl. packaging (cm) | 30.00 |
| Length without packaging (mm) | 216.00 |
|---|---|
| Width without packaging (mm) | 90.00 |
| Weight without packaging (kg) | 0.372 |
| Height without packaging (mm) | 68.00 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 2 |
