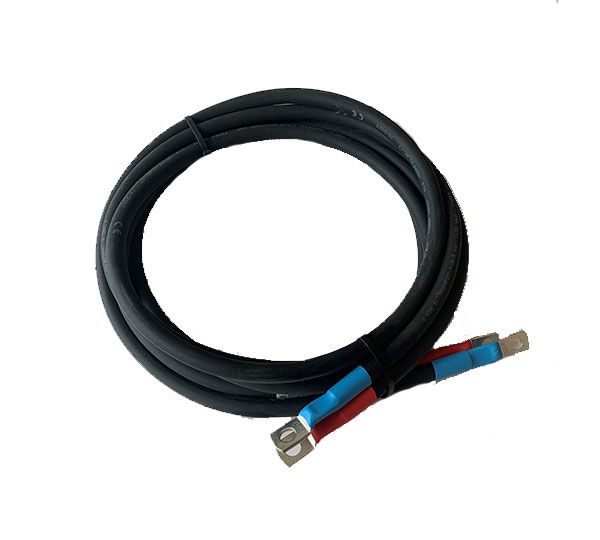

CABLE SET 35QMM 2500MM SE IV TO LG BAT
cable set for connecting SE with LG
Art. no.
8231647
Manufacturer No.
HIKSO330031767
Product details
Product information "CABLE SET 35QMM 2500MM SE IV TO LG BAT"
Battery connection set for LG Chem RESU 6.4/RESU 3.3/RESU 6.5/RESU 10/RESU 13
2 cables NSGAFÖU 1.8 / 3kV 1x 35,0 mm² black with 2,500mm length
A-side tube cable lug with narrow flange for M8 - 35 mm², B-side tube cable lug with narrow flange for M8 - 35 mm²
1. cable on both sides with red shrink tube, 2. cable on both sides with blue shrink tubing
Set as 250mm ring with 3 cable ties, label: battery connection set 2x 2,5m 35mm²
2 cables NSGAFÖU 1.8 / 3kV 1x 35,0 mm² black with 2,500mm length
A-side tube cable lug with narrow flange for M8 - 35 mm², B-side tube cable lug with narrow flange for M8 - 35 mm²
1. cable on both sides with red shrink tube, 2. cable on both sides with blue shrink tubing
Set as 250mm ring with 3 cable ties, label: battery connection set 2x 2,5m 35mm²
Technical details
| Cable length (cm) | 250.00 |
|---|---|
| Cross-section (mm²) | 35.00 |
| Colour | black |
| Intrastat country of origin | Germany |
|---|---|
| Intrastat product number (HS-code) | 85446010 |
| Manufacturer item name | Cable set 35qmm 2500mm SE IV to LG BAT |
| Manufacturer | HIS |
| Weight incl. packaging (Kg) | 2.640 |
|---|
| Weight without packaging (kg) | 2.640 |
|---|
