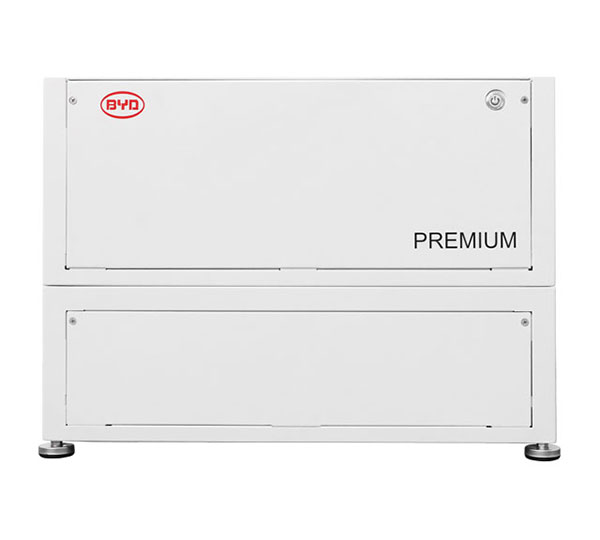

B-BOX PREMIUM LVL BAT-MODULE 2021 (15.36 kWh)
Low voltage lithium-ion battery storage module
Art. no.
8248205
Manufacturer No.
13272230-00
Product details
Product information "B-BOX PREMIUM LVL BAT-MODULE 2021 (15.36 kWh)"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
- Usable capacity: 15.36 kWh
The new LVL storage module is 16 cm higher on site (66 cm) than the previous version 8231408 (50 cm).
The product also features a simplified wiring concept and additional handles for easier installation.
The two products can be interconnected in the same installation and are compatible with each other.
Technical details
| Nominal Capacity (Ah) | 300.00 |
|---|---|
| Protection degree | IP20 |
| Max. output current discharging (A) | 250.00 |
| Min. temperature ambient (°C) | -10 |
| Cell chemistry | LFP |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 15.36 |
| Max. output current charging (A) | 250.00 |
| Battery voltage | Low Voltage |
| Nominal voltage DC (V) | 51.20 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | LVL 15.4 |
| Hazardous goods transportation category | 2 |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | BYD |
| Hazardous goods Weight (net) (kg) | 168.000 |
| Hazardous goods class | 9 |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Pal. dim. LxBxH (mm) | 760x680x900 |
|---|---|
| Length incl. packaging (cm) | 57.50 |
| Amount per Pallet | 1 |
| Height incl. packaging (cm) | 60.00 |
| Width incl. packaging (cm) | 65.00 |
| Pack. material | wooden box |
| Pal. weight (kg) | 200.00 |
| Weight incl. packaging (Kg) | 197.030 |
| Weight without packaging (kg) | 168.000 |
|---|---|
| Height without packaging (mm) | 600.00 |
| Length without packaging (mm) | 575.00 |
| Width without packaging (mm) | 650.00 |
| Product warranty (yr) | 10 |
|---|---|
| Warranty provider | BYD |
