B-BOX PREMIUM LVL 2021 15.4 + BMU (15,36 kWh)
Set
Low voltage lithium-ion battery storage system
Art. no.
8250000
Product details
Product information "B-BOX PREMIUM LVL 2021 15.4 + BMU (15,36 kWh)"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Note:
In the shopping cart, you have the option of removing individual components of the set from your order and replacing them with comparable products if necessary.
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Note:
In the shopping cart, you have the option of removing individual components of the set from your order and replacing them with comparable products if necessary.
- nominal voltage: 51.2 V
- Max. Output current: 250 A
- Peak output current: 375 A, 10s
- Operating Voltage Range: 40-57.6 V
- ambient temperature: -10 °C to +50 °C
- interfaces: CAN/RS485
- round trip energy efficiency: >= 95 %
- certification: IEC62619/ CEC / CE / UN38.3
- IP protection class: IP20
- Application: ON Grid / ON Grid + Backup / OFF Grid
- Extend anytime / up to 64 in parallel / 983 kWh usable
Set includes:

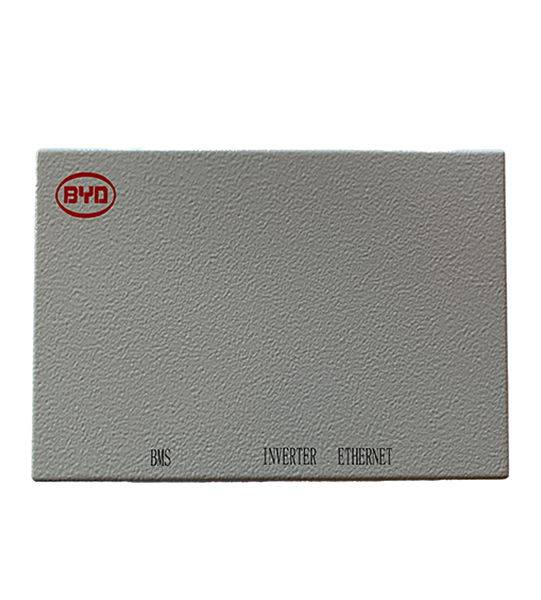

1x 8231407 (BYD Battery Management Unit)

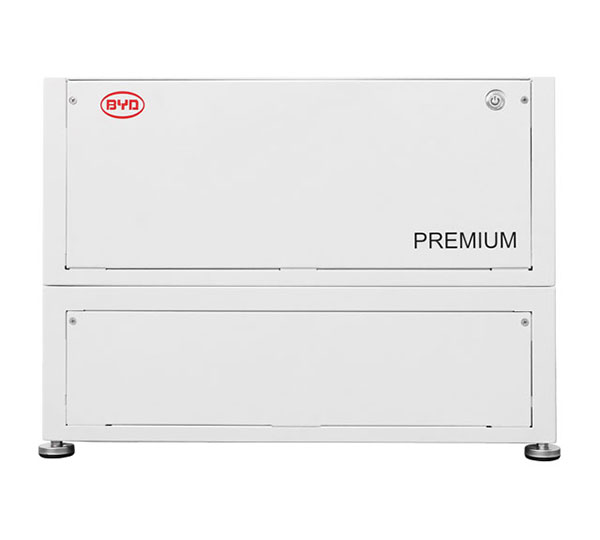

1x 8248205 (BYD B-BOX PREMIUM LVL 2021 battery module)
Downloads
-
B-BOX PREMIUM LVL BAT-MODULE 2021 (15.36 kWh)8248205
Technical details
| Protection degree | IP20 |
|---|---|
| Max. output current discharging (A) | 250.00 |
| Min. temperature ambient (°C) | -10 |
| Capacity extendable later | yes without restriction |
| Cell chemistry | LFP |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 15.36 |
| Max. output current charging (A) | 250.00 |
| Battery voltage | Low Voltage |
| Nominal voltage DC (V) | 51.20 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | BYD |
| Manufacturer item name | LVL 15.4*BMU |
| Hazardous goods Weight (net) (kg) | 168.000 |
| Hazardous goods class | 9 |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 201.630 |
|---|
| Weight without packaging (kg) | 171.000 |
|---|
| Product warranty (yr) | 10 |
|---|---|
| Warranty provider | BYD |
