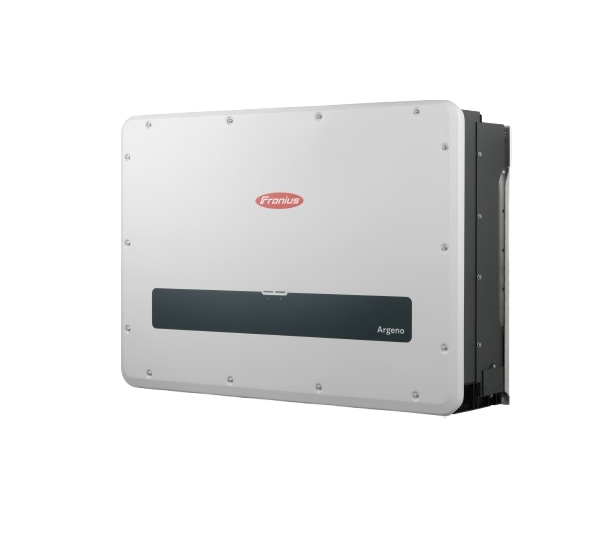

ARGENO 125 AFCI
PV-WR, 3-phasig, 10 MPPT, AFCI, ohne Display
Art. no.
8258405
Manufacturer No.
4,210,471
Product details
Product information "ARGENO 125 AFCI"
Technical details
| Topology | transformerless |
|---|---|
| Number of independent MPPT (pcs) | 10 |
| Start input voltage (V) | 250 |
| Surge protection AC | type 1 and type 2 |
| Min. voltage range input (V) | 200 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Max. input current per MPPT (A). | 30,0 |
| European efficiency (%) | 98.70 |
| Max. short circuit current (A) total | 375.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. AC power (kVA) | 125.00 |
| Display | w/o display |
| Max. efficiency (%) | 99.10 |
| Max. generator power DC (kWp) | 250.00 |
| Max. short circuit current per MPPT (A) | 37,5 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Max. input current DC (A) total | 300.00 |
| AC nominal power (kW) | 125.00 |
| Max. input voltage DC (V) | 1100.00 |
| Total number of string inputs | 20 |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| MPP max. voltage range input (V) | 1000.00 |
| Surge protection DC | type 1 and type 2 |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer item name | Argeno 125.0 AFCI |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Fronius |
| Width incl. packaging (cm) | 81.30 |
|---|---|
| Height incl. packaging (cm) | 43.80 |
| Amount per Pallet | 3 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 113.70 |
| Pal. dim. LxBxH (mm) | 1170x850x1490 |
| Weight incl. packaging (Kg) | 94.600 |
| Length without packaging (mm) | 1070.00 |
|---|---|
| Width without packaging (mm) | 755.00 |
| Weight without packaging (kg) | 85.200 |
| Height without packaging (mm) | 330.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
