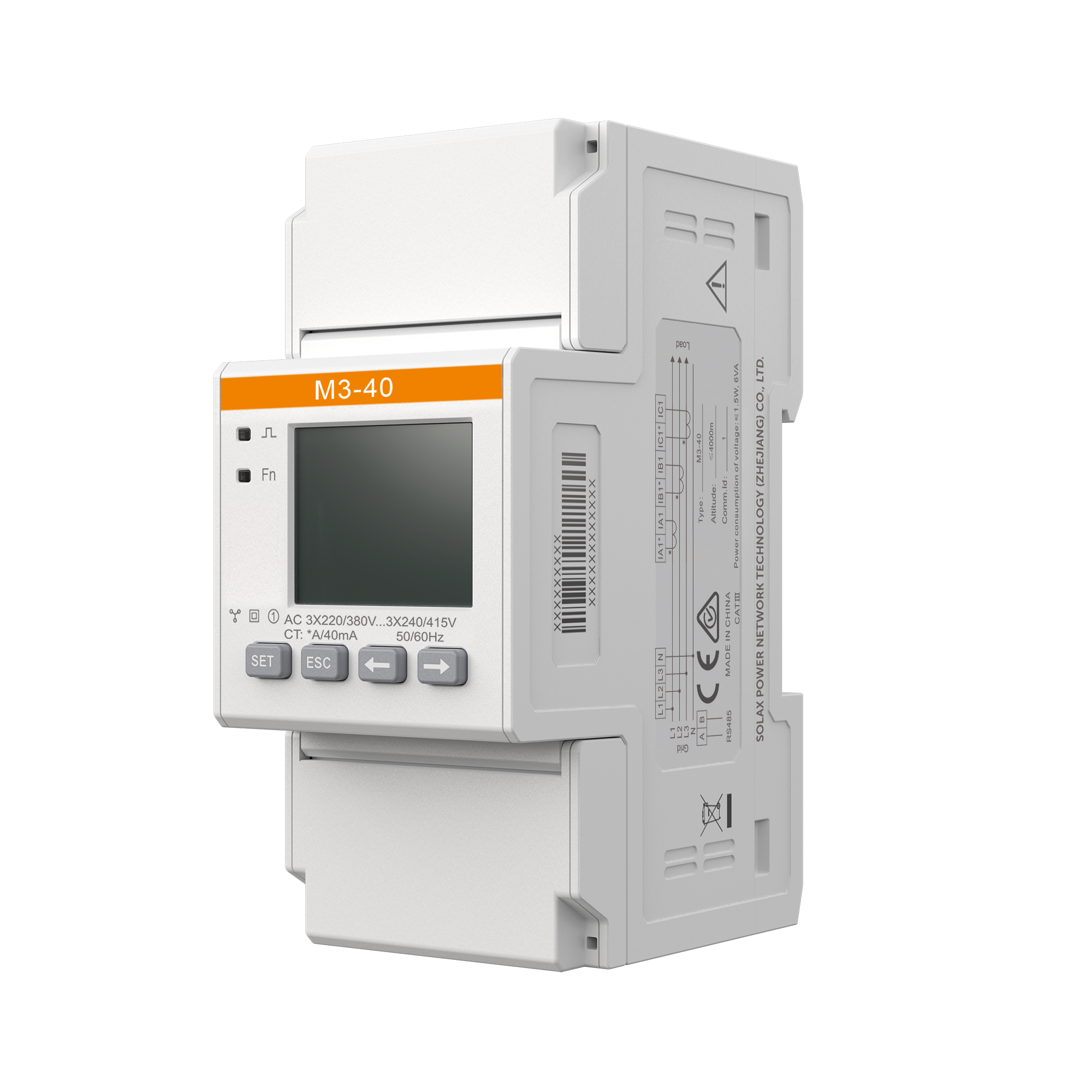

3-PHASE METER M3-40
3-phase, indirect measurement, 3 x CT 100A/40mA
Art. no.
8258708
Manufacturer No.
3252020025
Product details
Product information "3-PHASE METER M3-40"
Depending on the application, other sizes of CTs with 40mA secondary current are also available.
With the M1 / M3 Energy Meters from Solax, the energy flows at the grid connection point can be recorded quickly and precisely to enable charging management of the storage units and visualization of self-consumption. The update rate of 50ms enables system values to be displayed in almost real time.
Product features:
• Grid connection: 400 V
• Connection phases: 3-phase
• Measurement: indirectly via external CTs (order separately)
• Number of CTs: 3
• Communication: RS485
• Update rate: 50 ms
• Installation: top hat rail
Technical details
| Max. input current (A) total | 100.00 |
|---|---|
| Type of AC measurement | indirect |
| Mounting type | DIN rail |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 90283090 |
| Manufacturer item name | M3-40 |
| Weight incl. packaging (Kg) | 1.590 |
|---|---|
| Width incl. packaging (cm) | 4.50 |
| Amount per big Box | 24 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 10.00 |
| Amount per small Box | 1 |
| Length incl. packaging (cm) | 6.60 |
| Height without packaging (mm) | 100.00 |
|---|---|
| Width without packaging (mm) | 45.00 |
| Weight without packaging (kg) | 0.680 |
| Length without packaging (mm) | 66.00 |
| Standard product warranty (yr) | 2 |
|---|---|
| Warranty provider | SolaX Power |
