SH80CX, C&I Hybrid
Hybrid inverter, 10 MPPT, 3-phase
Art-No.
0165561
Manufacturer No.
A0SH1070
Product details
Product information "SH80CX, C&I Hybrid"
Additional components are required for connecting a ripple control receiver (FRE) or other control interfaces.
Additional components are required to connect a FRE or other control interfaces.
Article text:
The SH125CX is the first large C&I hybrid inverter from Sungrow. In addition to 10 MPP trackers, each with 40 amps of input current, extensive protective elements, the integrated backup connection with <10 ms switching time gains a lot of weight in this performance class. In addition to regular application scenarios, the device also offers new functions such as smart trading, dynamic electricity prices and virtual power plants. Ideally complemented with the Sungrow PowerKeeper high-voltage battery. The modular battery modules, each with 12.48 kWh, can be built into a total unit with almost 250 kWh. And with the Combiner Box even cascaded 4 times to an impressive 1000 kWh.
Product advantages:
• High DC input currents up to 40 A
• Integrated surge protection and arc detection
• Integrated backup connection with switching time <10 ms
Product features:
• AC rated power: 80.0 kW
• Feed-in phases: 3
• AC mains voltage: 400V
• Number of MPPT: 10
• Max. input voltage DC: 1100 V
• DC surge protection: Type 1+2
• AC surge protection: Type 2
• AFCI arc detection: yes (version 3.0)
• DC plug type: Stäubli MC4
• Voltage level to battery: high voltage
• Communication: Wifi, LAN, RS485, CAN, 2 x DI, 3 x DO, 4G (optional)
• Protection class: IP66
• Cooling: active
• Dimensions: 1095 x 795 x 360 mm
• Weight: 128.0 kg
• Guarantee: 10 years

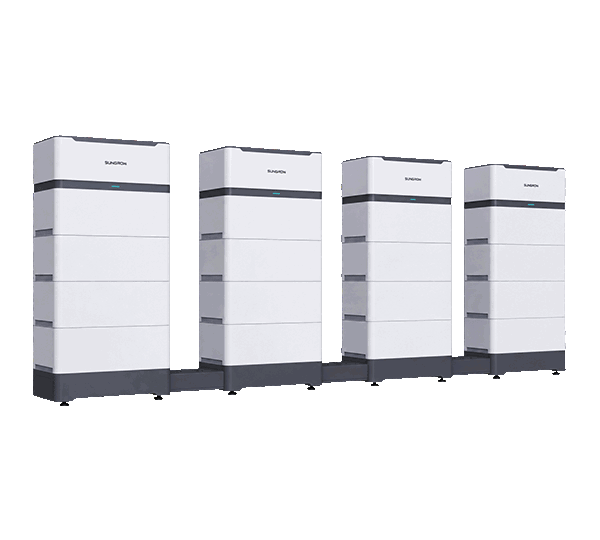

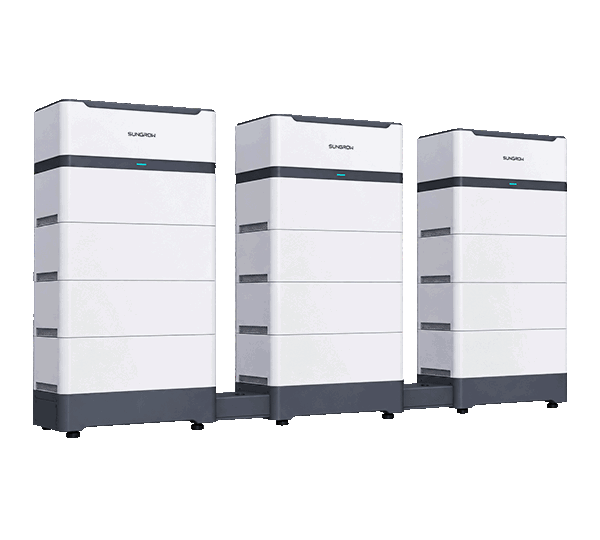

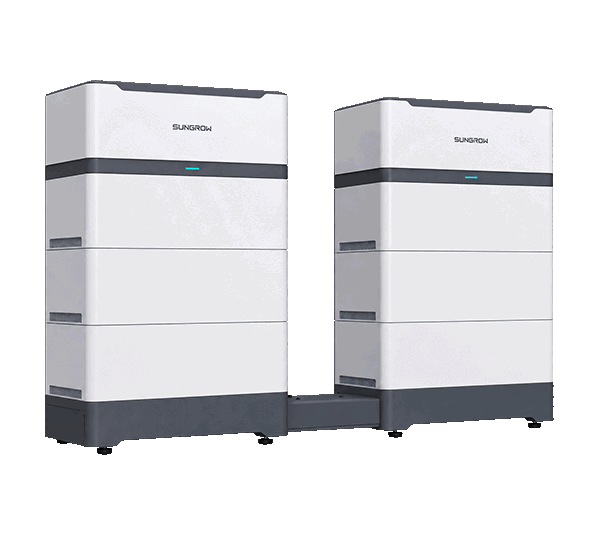

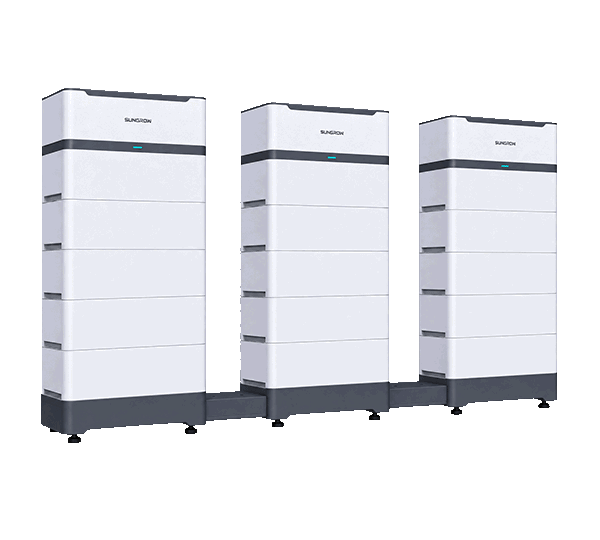

Compatible storage: Sungrow PowerKeeper, DC-PowerStack
Technical details
| AC nominal power (kW) | 80.00 |
|---|---|
| Surge protection AC | type 2 |
| Number of independent MPPT (pcs) | 10 |
| Arc Fault Circuit Interrupter | yes |
| Battery Connection | AC/DC |
| DC connection | MC4 |
| Surge protection DC | type 1 and type 2 |
| Decibel | 65 |
| Display | with display |
| Feed-in phases | 3 |
| Backup system light | no |
| Backup system full | yes |
| European efficiency (%) | 98.00 |
| Protection degree | IP66 |
| Total number of string inputs | 20 |
| Integrated DC switch | yes |
| Charging voltage (V) | 129 - 880 |
| Charging current (A) | 180.00 |
| Max. AC power (kVA) | 88.00 |
| Max. output current (A) | 133.70 |
| Max. generator power DC (kWp) | 100.00 |
| Max. input voltage DC (V) | 1100.00 |
| Max. input current DC (A) total | 400.00 |
| Max. input current per MPPT (A). | 40.0 |
| Max. short circuit current (A) total | 500.00 |
| Max. short circuit current per MPPT (A) | 50.0 |
| MPP max. voltage range input (V) | 1000.00 |
| Max. efficiency (%) | 98.30 |
| Min. voltage range input (V) | 180 |
| MPP min. voltage range input (V) | 180.00 |
| Min. temperature ambient (°C) | -30 |
| Grid protection | yes |
| Offgrid usable | no |
| Start input voltage (V) | 200 |
| Topology | transformerless |
| Manufacturer | Sungrow |
|---|---|
| Manufacturer item name | SH80CX |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85044084 |
| Length incl. packaging (cm) | 123.40 |
|---|---|
| Width incl. packaging (cm) | 62.40 |
| Height incl. packaging (cm) | 95.40 |
| Weight incl. packaging (Kg) | 166.500 |
| Amount per Pallet | 4 |
| Amount Pal. p. Cont. | 6 |
| Amount p. Cont. | 24 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 1095.00 |
|---|---|
| Width without packaging (mm) | 360.00 |
| Height without packaging (mm) | 885.00 |
| Weight without packaging (kg) | 121.000 |
| Warranty provider | Sungrow |
|---|---|
| Standard product warranty (yr) | 5 |
