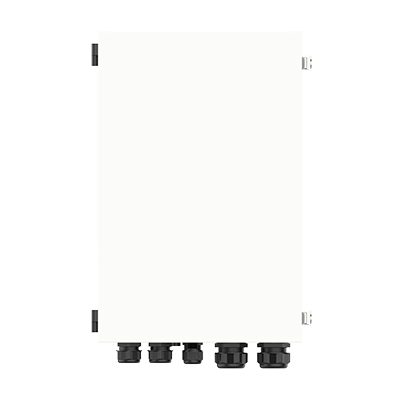

X3-Matebox G2
3-phase switching device, AC max. 63A
Art-No.
0159396
Manufacturer No.
106037000210
Product details
Product information "X3-Matebox G2"
The Solax Smart Meter is already installed in this box. If you select this with a storage package, please note this and use separate items if necessary.
The new X3-Matebox G2 from Solax can be flexibly connected to hybrid inverters of the X3 series* up to 15 kW. Automatic switching of the entire house connection is also possible in the 2nd generation. The mounting position, which is now separate from the inverter, makes it easier to integrate into the existing system.
Product advantages:
• Automatic switchover in the event of a power failure
• Complete switchover of the entire house connection possible**
• Solax Smart Meter already integrated
Product features:
• AC mains voltage: 400 V
• Connection phases: 3
• Maximum rated current of house connection: 63 A
• Maximum rated current of inverter: 25.0 A
• Cooling: passive
• Protection class: IP65
• Dimensions: 549 x 360 x 192 mm (H x W x D)
• Weight: 13.5 kg
*Compatible with the following inverter series:
- X3-Hybrid-G4-D
- X3-IES
- X3-Hybrid-G4 PRO
*Sufficiently dimensioned storage system required; suitability to be assessed individually
Technical details
| Protection degree | IP65 |
|---|---|
| Nominal current (A) | 63.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | X3-MATEBOX-G2 |
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 85049090 |
| Length incl. packaging (cm) | 59.00 |
|---|---|
| Pal. dim. LxBxH (mm) | 1200x800x2320 |
| Weight incl. packaging (Kg) | 18.300 |
| Amount per Pallet | 16 |
| Width incl. packaging (cm) | 26.00 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 79.00 |
| Pal. weight (kg) | 307.80 |
| Weight without packaging (kg) | 13.500 |
|---|---|
| Height without packaging (mm) | 360.00 |
| Length without packaging (mm) | 549.00 |
| Width without packaging (mm) | 192.00 |
| Standard product warranty (yr) | 5 |
|---|---|
| Warranty provider | SolaX Power |
