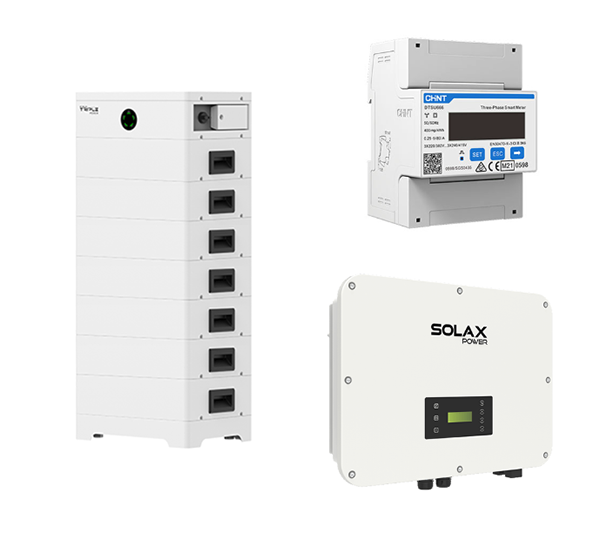

T-BAT HS 17.5 + X3-ULTRA-25K
HV storage system, 16.10 kWh usable, 3-phase
Art-No.
0155593
Product details
Product information "T-BAT HS 17.5 + X3-ULTRA-25K"
Solax offers the new X3-Ultra series for XL home systems or XS commercial systems. With performance classes from 15 to 30 kW, high DC input currents and 2 independent battery connections, the high-voltage hybrids are a real statement. Integrated surge protection, AFCI arc detection and interfaces for radio ripple control receivers etc. leave little to be desired. Like the “small” X3 series, the Ultras can also be operated as true off-grid systems with a generator. As a perfect addition, there are also the new HV-S high-voltage storage series with up to 43.1 kWh usable capacity. Thanks to the 2 separate storage connections on the Ultra, up to 86.2 kWh is possible. To optimize the charging performance, our sets of 8 or more storage modules are divided into both connections of the hybrid inverter.
Product advantages:
• Ideal for big-residential and small-commercial applications
• Emergency power with UPS function < 10ms
• High input current per MPPT
• 2 independent battery connections
• Integrated arc detection AFCI
• Backup outputs can be cascaded *
Product features system:
• AC power: 25.0 kW
• Number of MPPT: 3
• DC input current: 36 A per MPPT
• Battery connections: 2
• Max. charging current storage: 30 A each
• AC connection: 3-phase
• Communication: Wifi, LAN (opt.), RS485
• Interfaces: 5 x DI (FRE), 2 x DO
• Protection class: IP65
• Cooling: active
• Dimensions: 696 x 526 x 240 mm (W x H x D)
• Weight: 47.0 kg
Product features storage:
• Battery capacity (usable): 16.10 (2.3 per module) kWh
• Time window extension: unlimited
• Cascadable: 2 to 13 battery modules (9 units or more require Solax Series box)
• Cell chemistry: LFP
• Rated voltage: 51.2 V per battery module
• Protection class: IP65
• Dimensions: 1185 x 510 x 365 mm (HxWxD)
• Weight: Battery 28.0 kg each, BMS 10.0 kg
* Required accessories: X3-Ultra-EPS parallel box (currently only announced).
Conclusion:
If you just need to be bigger – no problem with the Solax Ultra hybrids including HS storage.
Scope of delivery:

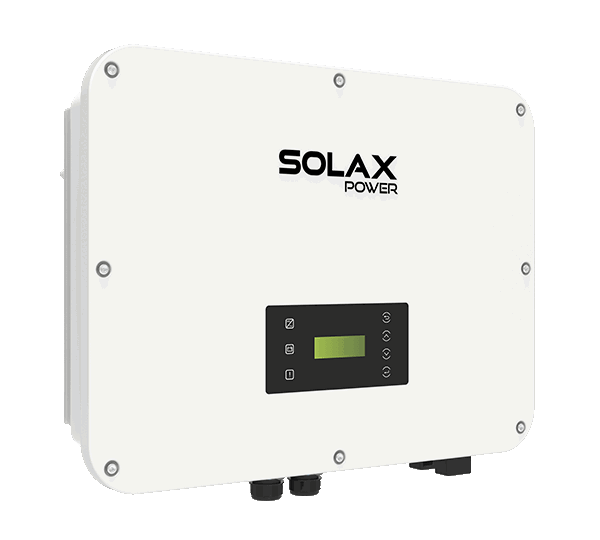

• 1 x Solax X3-Ultra Hybrid 25K (item 0155100)

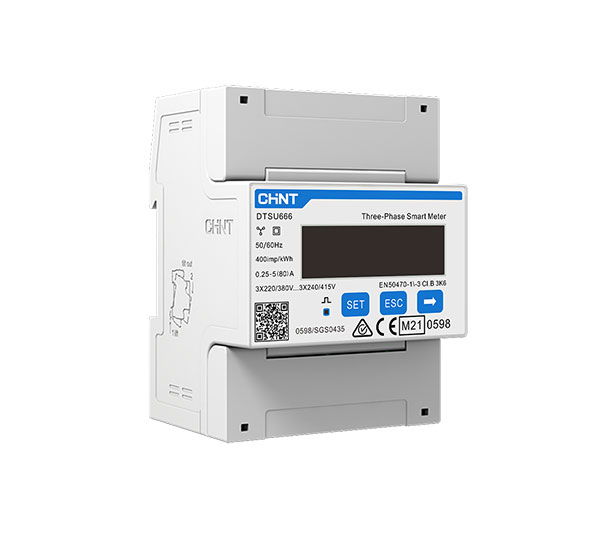

• 1 x Solax Meter DTSU666-D (item 0128464)

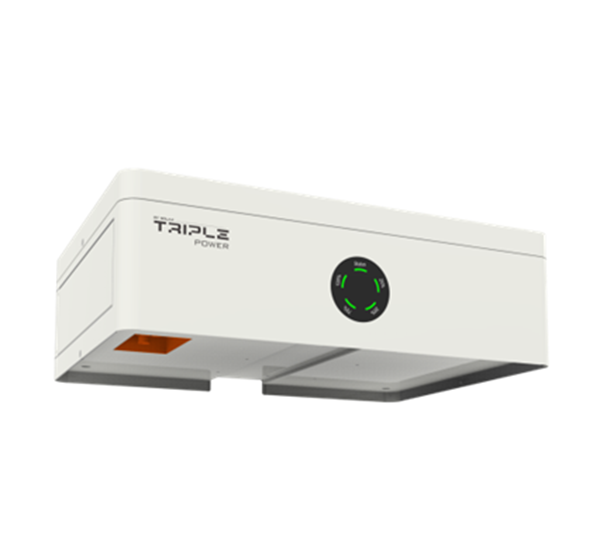

• 1 x Solax MCS0800 BCU + socket (item 0155372)

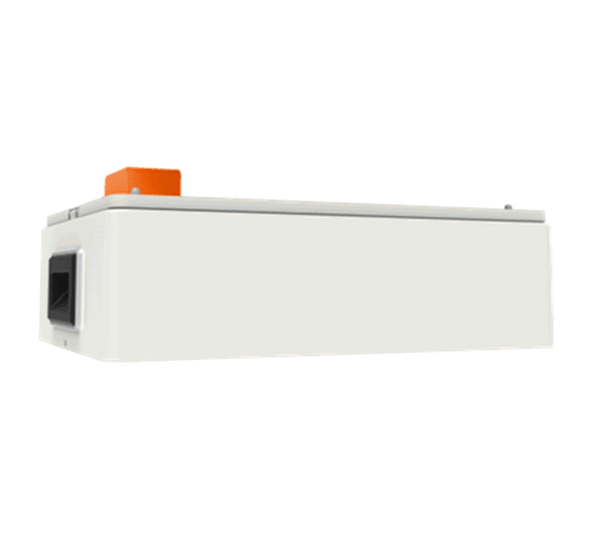

• 7 x Solax HV-S 2.5 storage module (item 0155103)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods Weight (net) (kg) | 123.200 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current (A) total | 135.00 |
| AC nominal power (kW) | 25.00 |
| Max. short circuit current per MPPT (A) | 45 |
| Max. discharging power (kW) | 10.70 |
| Max. generator power DC (kWp) | 50.00 |
| Total number of string inputs | 6 |
| Usable capacity (kWh) | 16.10 |
| Protection degree | IP65 |
| Max. input current DC (A) total | 108.00 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. nominal charging power (kW) | 10.70 |
| Number of independent MPPT (pcs) | 3 |
| Max. output current (A) | 39.90 |
| Contact for self-consumption optimization (e.g. for heat pump) | 2 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Feed-in phases | 3 |
| MPP max. voltage range input (V) | 950.00 |
| Capacity extendable later | yes without restriction |
| Commercial system | yes |
| Max. input current per MPPT (A). | 36 |
| Battery voltage | High Voltage |
| Max. efficiency (%) | 98.00 |
| Battery cell chemistry | LFP |
| MPP min. voltage range input (V) | 160.00 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Max. AC power (kVA) | 27.50 |
| Surge protection DC | type 2 |
| Contact ripple control receiver | yes |
| Backup system light | yes |
| Arc Fault Circuit Interrupter | yes |
| Amount connected phases | 3 |
| Backup system full | yes |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Dangerous goods Weight (net) (kg) | 123.200 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Manufacturer item name | T-BAT-SYS-HV-S2.5*MCS0800*X3-ULTRA-25K |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 312.260 |
|---|
| Weight without packaging (kg) | 253.710 |
|---|
| Warranty provider | SolaX Power |
|---|
