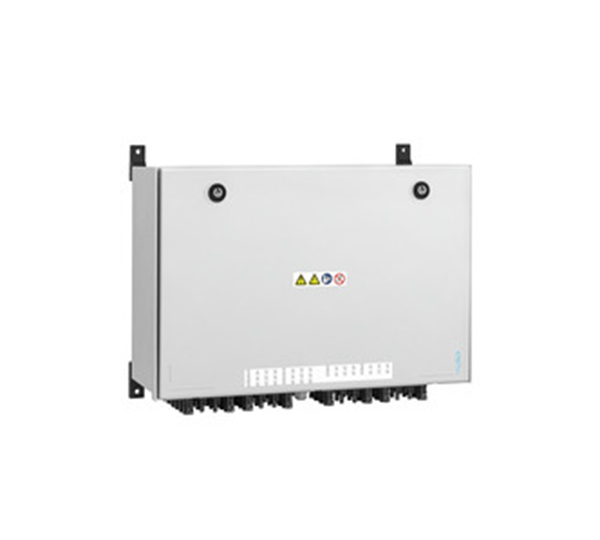

Surge protection box
10 MPPT, type 1+2, In: 20 / Out: 20, MC4 Evo 2
Art-No.
0154600
Manufacturer No.
8000107559
Product details
Product information "Surge protection box"
PV Next generator connection boxes for inverters with 1 to 12 MPP trackers are used to protect the DC side of a photovoltaic system. They reliably protect the inverter against overvoltage and comply with European Directive CLC/TS 51643 32. In addition, the generator connection boxes protect the system against reverse currents. The products also offer the option of combining strings to save on cables during installation and simplify the overall installation.
Product advantages:
• For inverters with 1 to 12 MPP trackers
• Complies with European Directive CLC/TS 51643-32
Product features:
• DC surge protection: Type 1+2
• Number of MPPT: 10
• DC rated voltage: 1100 V
• DC rated current: 41 A
• DC connection: Stäubli MC4 Evo 2
• Protection class: IP 65
• Dimensions: 257 x 600 x 485 mm
• Weight: 18.10 kg
Technical details
| Number of independent MPPT (pcs) | 10 |
|---|---|
| DC connection | MC4 Evo 2 |
| Surge protection DC | type 1 and type 2 |
| Protection degree | IP65 |
| Total number of string inputs | 20 |
| Integrated string monitoring | no |
| Max. number of string outputs (pcs) | 20 |
| Max. input voltage DC (V) | 1100.00 |
| Max. input current per string (A) | 41.00 |
| Min. temperature ambient (°C) | -20 |
| String fuses | not included |
| Manufacturer | Weidmüller |
|---|---|
| Manufacturer item name | PVC DC 2I 2O 10MPP SPD1R EVO 11 |
| Intrastat country of origin | Czech republic |
| Intrastat product number (HS-code) | 85372091 |
| Length incl. packaging (cm) | 73.40 |
|---|---|
| Width incl. packaging (cm) | 53.90 |
| Height incl. packaging (cm) | 29.80 |
| Weight incl. packaging (Kg) | 18.470 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 257.00 |
|---|---|
| Width without packaging (mm) | 600.00 |
| Height without packaging (mm) | 485.00 |
| Weight without packaging (kg) | 18.100 |
| Warranty provider | Weidmüller |
|---|
