SingleHook 3S light
Roof hook, 3-way height-adjustment
Art-No.
0160029
Manufacturer No.
2004795
Product details
Product information "SingleHook 3S light"

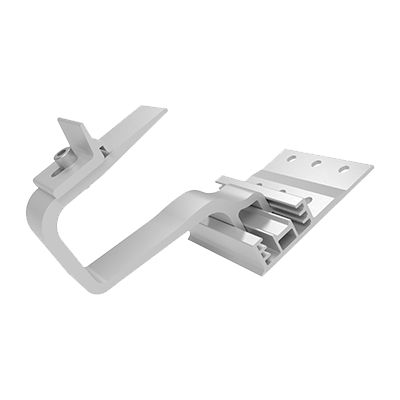

The roof hook offers maximum flexibility thanks to 3-way height-adjustment in the base plate (40, 47, 55 mm). Suitable for rafters from 48 mm, for narrow rafters from 36 mm in combination with an M6 wood screw. The 6 mm thick bracket ensures high stability and is ideal for concrete roof tiles. Includes pre-assembled Climber 36/50 and cylinder head screw for quick and secure installation. For attaching the K2 SingleRail and CrossRail mounting rails.
Product advantages:
• Suitable for narrow rafters
• Height and side adjustable
• Ideal for concrete roof tiles
Product features:
• Suitable for: K2 SingleRail System
• Area of application: Pitched roof
• Material: aluminium, stainless steel
• Colour: silver
• Weight: approx. 0.531 kg
Technical details
| Manufacturer | K2 Systems |
|---|---|
| Manufacturer item name | SingleHook 3S light |
| Intrastat country of origin | Germany |
| Intrastat product number (HS-code) | 76109090 |
| Length incl. packaging (cm) | 22.20 |
|---|---|
| Width incl. packaging (cm) | 10.00 |
| Height incl. packaging (cm) | 15.60 |
| Weight incl. packaging (Kg) | 0.565 |
| Amount per Pallet | 720 |
| Amount per big Box | 30 |
| Pal. weight (kg) | 407.03 |
| Pal. dim. LxBxH (mm) | 1200x800x960 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 222.00 |
|---|---|
| Width without packaging (mm) | 100.00 |
| Height without packaging (mm) | 156.00 |
| Weight without packaging (kg) | 0.531 |
