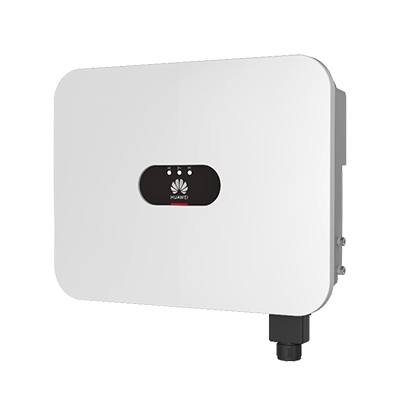

SUN2000-3K-LB0
Hybrid-IV, 1-phase, 2 MPPT, AFCI, w/o Display
Art-No.
0159499
Manufacturer No.
01077160
Product details
Product information "SUN2000-3K-LB0"
Optional dongles for WLAN-FE or 4G/3G/2G must be ordered separately.
The global manufacturer Huawei has been successful in the photovoltaic and storage market for many years. This is also reflected in a wide range of inverters and additional components for every application. Whether XXL large-scale systems or sophisticated complete systems with storage and intelligent accessories in the home or commercial segment. Thanks to the direct connection of the in-house LUNA high-voltage storage system and the module optimisers, the single-phase devices of the new LB0 series offer maximum flexibility in the residential sector, even for smaller systems. An extensive range of communication and protection components plus a backup function round everything off perfectly.
Product benefits:
• Integrated AFCI arc detection
• Also compatible with Huawei optimisers
• Can also be used for off-grid applications (stand-alone system)
Product features:
• AC rated power: 3 kW
• Feed-in phases: 1
• AC mains voltage: 230 V
• Number of MPPT: 2
• Max. DC input voltage: 600 V
• Input current per MPPT: 16.0 A
• DC overvoltage protection: Type 2
• AC overvoltage protection: Type 2
• AFCI arc detection: yes
• Backup power capability: yes, with SmartGuard 63A S0
• Communication: RS485, WLAN, LAN with dongle (optional)
• Protection class: IP66
• Cooling: passive
• Dimensions: 365 x 425 x 130 mm (H x W x D)
• Weight: 15.0 kg
• Warranty: 10 years
Compatible optimisers:
• SUN2000-450W-P2
• SUN2000-600W-P
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 20 |
| Max. efficiency (%) | 97.80 |
| Interface 1 | W-Lan |
| Max. input current per MPPT (A). | 16 |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Max. input voltage DC (V) | 600.00 |
| Protection degree | IP66 |
| Interface 2 | RS485 |
| Number of independent MPPT (pcs) | 2 |
| Max. generator power DC (kWp) | 4.50 |
| Max. short circuit current (A) total | 40.00 |
| Total number of string inputs | 2 |
| Charging voltage (V) | 350 - 560 |
| Max. AC power (kVA) | 3.30 |
| Max. input current DC (A) total | 32.00 |
| Surge protection AC | type 2 |
| MPP min. voltage range input (V) | 40.00 |
| Battery Connection | AC/DC |
| Start input voltage (V) | 50 |
| Display | w/o display |
| Charging current (A) | 16.50 |
| Battery voltage | High Voltage |
| MPP max. voltage range input (V) | 560.00 |
| AC nominal power (kW) | 3.00 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Surge protection DC | type 2 |
| Grid protection | yes |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Feed-in phases | 1 |
| Decibel | 29 |
| Max. output current (A) | 15.00 |
| European efficiency (%) | 96.60 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer item name | SUN2000 -3K-LB0 |
| Manufacturer | Huawei |
| Amount p. Cont. | 768 |
|---|---|
| Amount per Pallet | 16 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 19.000 |
| Height without packaging (mm) | 130.00 |
|---|---|
| Weight without packaging (kg) | 15.000 |
| Length without packaging (mm) | 425.00 |
| Width without packaging (mm) | 365.00 |
| Standard product warranty (yr) | 10 |
|---|---|
| Warranty provider | Huawei |
