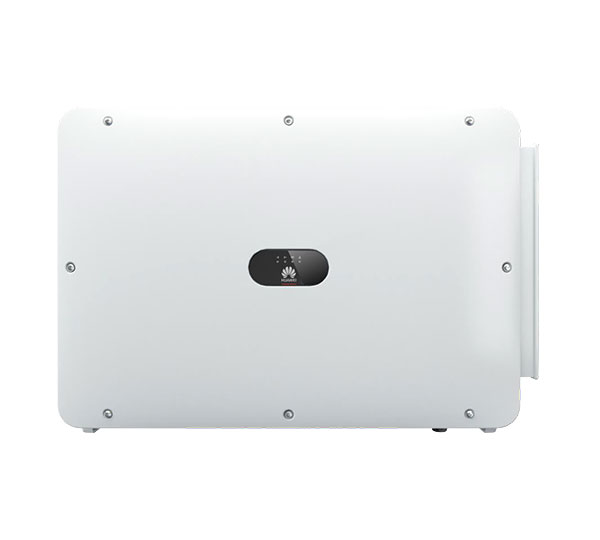

SUN2000-215KTL-H0
String inverter, 3-ph, 9 MPPT, 800 V AC
Art-No.
0162066
Manufacturer No.
01075607-005
Product details
Product information "SUN2000-215KTL-H0"
This device is only suitable for connection to the medium-voltage mains supply (rated operating voltage = 800 V).
The smart logger or the dongle is not included in the scope of delivery.
To connect a radio ripple control receiver, the smart logger (0133261) is also required in DE.
With up to 30 amps of input current, 9 MPP trackers, and a range of additional features, Krannich would call it "a beautiful box with power." These include surge protection on the AC and DC sides as well as smart I-V characteristic curve measurement. Ideal prerequisites for demanding applications in the commercial segment with grid connection at the 800 V level.
Product advantages:
• High DC input current
• Smart I-V characteristic curve measurement
• Integrated AC+DC surge protection Type 2
Product features:
• Nominal AC power: 200.0 kW
• Feed-in phases: 3
• AC grid voltage: 800 V
• Number of MPPTs: 9
• Max. DC input voltage: 1500 V
• DC surge protection: Type 2
• AC surge protection: Type 2
• DC connector type: Stäubli MC4 ECO2
• Communication: RS485, MBus
• Protection class: IP66
• Cooling: Active
• Dimensions: 700 x 1035 x 365 mm (H x W x D)
• Weight: 86.0 kg
Technical details
| Topology | transformerless |
|---|---|
| MPP min. voltage range input (V) | 500.00 |
| DC connection | MC4 Evo 2 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Max. short circuit current (A) total | 450.00 |
| Max. generator power DC (kWp) | 240.00 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 270.00 |
| Surge protection AC | type 2 |
| Total number of string inputs | 18 |
| Interface 1 | RS485 |
| Feed-in phases | 3 |
| Display | w/o display |
| Start input voltage (V) | 550 |
| Max. short circuit current per MPPT (A) | 50 |
| Max. input voltage DC (V) | 1500.00 |
| Max. output current (A) | 155.20 |
| Max. input current per MPPT (A). | 30 |
| Max. AC power (kVA) | 215.00 |
| Surge protection DC | type 2 |
| MPP max. voltage range input (V) | 1500.00 |
| European efficiency (%) | 98.60 |
| Max. efficiency (%) | 99.00 |
| Number of independent MPPT (pcs) | 9 |
| AC nominal power (kW) | 200.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | SUN2000-215KTL-H0 |
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer | Huawei |
| Amount per Pallet | 2 |
|---|---|
| Weight incl. packaging (Kg) | 99.000 |
| Length without packaging (mm) | 700.00 |
|---|---|
| Weight without packaging (kg) | 86.000 |
| Height without packaging (mm) | 365.00 |
| Width without packaging (mm) | 1035.00 |
| Warranty provider | Huawei |
|---|---|
| Standard product warranty (yr) | 5 |
