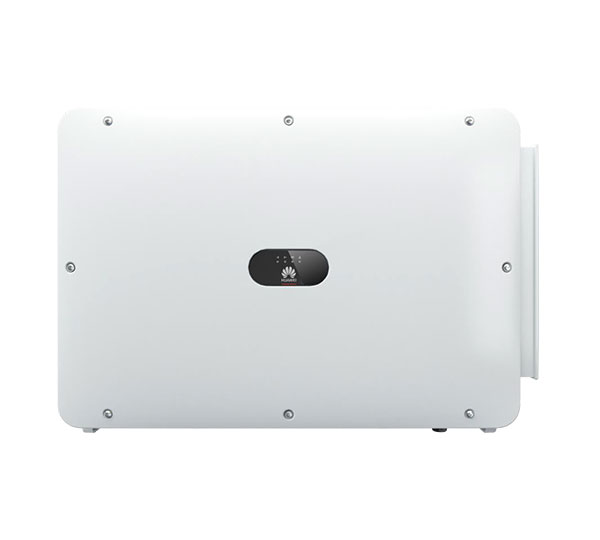

SUN2000-115KTL-M2
String inverter, 3-ph, 10 MPPT, DC SPD Typ 1+2
Art-No.
0160984
Manufacturer No.
01074694-009
Product details
Product information "SUN2000-115KTL-M2"
The scope of delivery does not include a communication interface (Wi-Fi FE/4G dongle). Depending on the model required, this must be purchased separately.
With up to 30 amps of input current, 10 MPP trackers, and a range of additional features, Krannich would call it "a nice box with power." These include surge protection on the AC and DC sides as well as smart I-V characteristic curve measurement. Ideal prerequisites for demanding applications in the commercial segment.
Product advantages:
• High DC input current
• Smart I-V characteristic curve measurement
• Integrated DC surge protection Type 1+2
Product features:
• AC nominal power: 115.0 kW
• Feed-in phases: 3
• AC grid voltage: 400 V
• Number of MPPTs: 10
• Max. DC input voltage: 1100 V
• DC surge protection: Type 1+2
• AC surge protection: Type 2
• DC connector type: Amphenol Helios H4
• Communication: RS485, MBus, optional Wi-Fi + LAN / 4G (via dongle)
• Protection class: IP66
• Cooling: Active
• Dimensions: 700 x 1035 x 365 mm (H x W x D)
• Weight: 93.0 kg
Technical details
| AC nominal power (kW) | 115.00 |
|---|---|
| Surge protection AC | type 2 |
| Number of independent MPPT (pcs) | 10 |
| Arc Fault Circuit Interrupter | no |
| DC connection | H4Amphenol |
| Surge protection DC | type 1 and type 2 |
| Display | w/o display |
| Feed-in phases | 3 |
| European efficiency (%) | 98.60 |
| Protection degree | IP66 |
| Total number of string inputs | 20 |
| Integrated DC switch | yes |
| Max. AC power (kVA) | 125.00 |
| Max. output current (A) | 182.30 |
| Max. generator power DC (kWp) | 115.00 |
| Max. input voltage DC (V) | 1100.00 |
| Max. input current DC (A) total | 300.00 |
| Max. input current per MPPT (A). | 30 |
| Max. short circuit current (A) total | 400.00 |
| Max. short circuit current per MPPT (A) | 40 |
| MPP max. voltage range input (V) | 1000.00 |
| Max. efficiency (%) | 98.80 |
| Min. voltage range input (V) | 200 |
| MPP min. voltage range input (V) | 200.00 |
| Min. temperature ambient (°C) | -25 |
| Grid protection | yes |
| Interface 1 | RS485 |
| Interface 2 | USB |
| Start input voltage (V) | 200 |
| Topology | transformerless |
| Manufacturer | Huawei |
|---|---|
| Manufacturer item name | SUN2000-115KTL-M2 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85044084 |
| Length incl. packaging (cm) | 115.00 |
|---|---|
| Width incl. packaging (cm) | 75.50 |
| Height incl. packaging (cm) | 49.50 |
| Weight incl. packaging (Kg) | 106.000 |
| Amount per Pallet | 2 |
| Pal. weight (kg) | 136.00 |
| Pal. dim. LxBxH (mm) | 1180x760x1139 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 1035.00 |
|---|---|
| Width without packaging (mm) | 700.00 |
| Height without packaging (mm) | 365.00 |
| Weight without packaging (kg) | 93.000 |
| Warranty provider | Huawei |
|---|---|
| Standard product warranty (yr) | 5 |
