SE50K
Product information "SE50K"
usable in Belgium, Czech Republic, Denmark, Finland, France, Hungary, Ireland, Italy, Poland, Portugal, Slovakia, Slovenia, Spain, United Kingdom
Smart Home components such as EV Charger, Hot Water Controller, Smart Switch, etc. cannot be used with inverters > SE17K.
- Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection

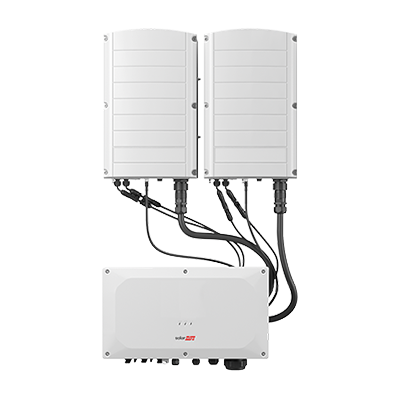

- Easy 2-person installation with lightweight, modular design (each inverter consists of 2 Synergy Units and one Synergy Manager)
- Independent operation of each Synergy Unit enables higher uptime and easy serviceability
- Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
- Built-in arc fault protection (AFCI)
- Built-in PID mitigation for maximized system performance
- Monitored (applicable only for DC and AC SPD) and field-replaceable surge protection devices, to better withstand surges caused by lightning or other events: integrated RS485 and Type 2 DC SPDs
- Built-in module-level monitoring with Ethernet or cellular communication for full system visibility
Technical details
| Max. AC power (kVA) | 50.00 |
|---|---|
| Topology | transformerless |
| DC connector type | MC4 |
| Total number of string inputs | 8 |
| Min. temperature ambient (°C) | -40 |
| Step-Up converter | no |
| Protection degree | IP65 |
| Max. generator power DC (kWp) | 87.50 |
| Max. input voltage DC (V) | 1000.00 |
| Interface 1 | RS485 |
| European efficiency (%) | 98.00 |
| Display | w/o display |
| Degree of protection IP | IP65 |
| Decibel | 67 |
| Surge protection DC | type 2 |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| Min. voltage range input (V) | 680 |
| Max. input current DC (A) total | 72.50 |
| AC nominal power (kW) | 50.00 |
| Integrated DC switch | no |
| Max. efficiency (%) | 98.30 |
| Intrastat country of origin | Israel |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | SolarEdge |
| Weight incl. packaging (Kg) | 90.000 |
|---|
| Weight without packaging (kg) | 82.000 |
|---|
