Reserva 15.8 + Verto plus 15.0 SPD I+II

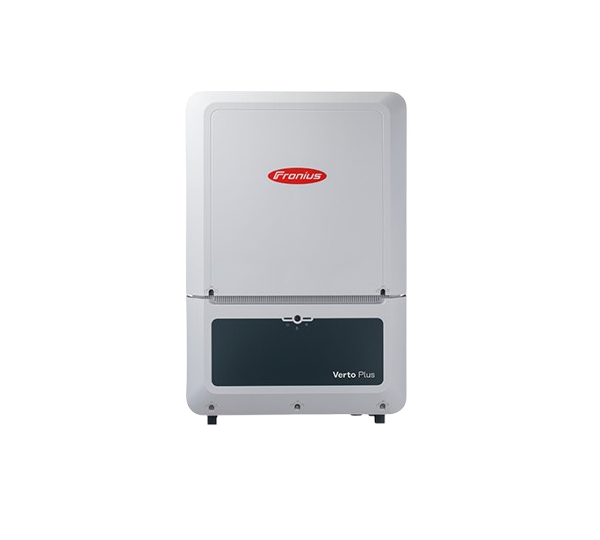

As with the Fronius GEN24 devices, the ‘plus’ makes all the difference in the new Verto series. The Verto Plus hybrid inverters are already equipped with a powerful high-voltage storage connection ex works. With 15 to 33 kW, they are the ideal system modules in the small-commercial segment. The proven complete communication equipment is complemented by AC and DC-side overvoltage protection and Fronius Arc Guard Technology. High security standards are also set for data backup with servers in Europe. Here combined with the Reserva high-voltage storage system. In the proven stacked design, just under 15.8 kWh of usable capacity can be realised with 5 elements. For larger storage requirements, up to 4 systems can be connected in parallel.

Product advantages:

• 28 A input current per MPPT / string

• 50 A charging current to the high-voltage storage system

• 3-phase backup current possible with Fronius Backup Switch + Controller

Product features System:

• AC nominal power: 15.0 kW

• Grid connection: 3-phase

• AC grid voltage: 400 V

• Number of MPPT: 3

• Max. DC input voltage: 1000 V

• Max. DC input current: 28 A per MPPT

• DC overvoltage protection: Type 1+2

• AC overvoltage protection: Type 2

• DC connector type: PV - Stäubli MC4, Bat - Stäubli MC4 Evo Stor

• Number of battery connections: 1

• Communication: WLAN, Ethernet

• Interfaces: 2 x RS485, 6 x DI (FRE), 6 x DO

• Protection class: IP66

• Cooling: active

• Weight: 43.0 kg

• Dimensions: 865 x 574 x 279 mm (H x W x D)

• Warranty: 2 years + a further 3 years after free registration

Product features Storage:

• Battery capacity (usable): 15.79 kWh

• Storage type: High-voltage

• Extension window: bi 2 years

• Number of storage modules in one unit: 2 to 5

• Number of units in parallel: up to 4

• Cell chemistry: LFP

• Communication: RS485

• Cooling: passive

• Protection class: IP65

• Dimensions: 1610 x 780 x 176 mm (H x W x D)

• Weight: BMS + base 19.5 kg, each storage module 33.5 kg

Summary:

The Verto Plus is Fronius' entry into the small commercial segment. Ideally complemented by the Reserva high-voltage storage system.

Scope of delivery:

• 1 x Fronius Verto Plus 15.0 hybrid inverter (item 0159332)

• 1 x Fronius Smart Meter TS 65A-3 (item 0151650)

• 1 x Fronius Reserva BMS (item 0158879)

• 5 x Fronius Reserva storage module (item 0158880)
