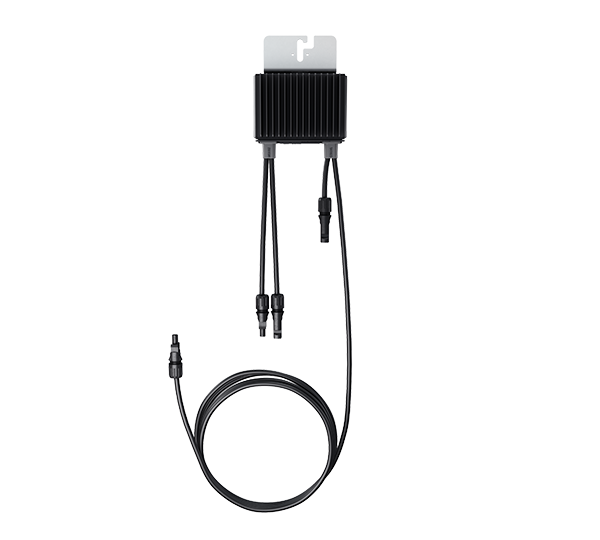

Power Optimizer S1400
Cable In: 1.8 m, Out: 5.7/ 0.1 m; MC4
Art-No.
0156282
Manufacturer No.
S1400-1GMZMBWD
Product details
Product information "Power Optimizer S1400"
Please use SolarEdge Designer to check the system design. Please note that the system and string connection specifications may vary depending on the inverter and module type. The installation technician is always responsible for checking and documenting the system design.
This optimizer can be used with PV modules up to 750 W in a 2:1 connection in accordance with special approval from SolarEdge. This increases the rated input power to 1500 W.
With its unique system concept featuring powerful power optimisers, SolarEdge enables optimal energy utilisation for your commercial and large-scale installations. The high flexibility in module arrangement and interconnection results in maximum efficiency of up to 99.5 %. SolarEdge optimisers minimise power losses due to module mismatching, thereby increasing energy yield even with different inclinations, orientations or shading. Integrated safety features such as SafeDC™ and continuous system monitoring contribute to safe and reliable operation of the system. SolarEdge power optimisers are specifically designed for use with SolarEdge inverters and are compatible with bifacial PV modules. This optimiser is ideal for modules with landscape orientation.
Product advantages:
• Maximum efficiency of up to 99.5 %
• Integrated safety features such as SafeDC™
• For use with SolarEdge inverters
• Compatible with bifacial PV modules
Product features:
• Rated input power: 1400 W
• Short circuit current Isc: 20 A
• MPP max. voltage range input: 105 V
• MPP min. voltage range input: 12,5 V
• Max. input voltage DC: 125 V
• Interface: Powerline
• DC connector type: MC4
• Cable length output: 570 cm (plus) / 10 cm (minus)
• Weight: 1.087 kg
• Warranty: 25 years
Technical details
| DC connector type | MC4 |
|---|---|
| Max. input voltage DC (V) | 125.00 |
| Rated input power (W) | 1400 |
| MPP min. voltage range input (V) | 12.50 |
| Length of cable output plus (cm) | 570.00 |
| Short circuit current Isc (A) | 20.00 |
| Length of cable output minus (cm) | 10.00 |
| Protection degree | IP68 |
| MPP max. voltage range input (V) | 105.00 |
| Intrastat country of origin | Israel |
|---|---|
| Manufacturer item name | S1400 |
| Manufacturer | SolarEdge |
| Intrastat product number (HS-code) | 90328900 |
| Weight incl. packaging (Kg) | 1.485 |
|---|---|
| Width incl. packaging (cm) | 12.90 |
| Height incl. packaging (cm) | 5.20 |
| Pack. material | cardboard box |
| Amount per Pallet | 420 |
| Length incl. packaging (cm) | 16.50 |
| Pal. dim. LxBxH (mm) | 1200x800x2180 |
| Amount per big Box | 10 |
| Length without packaging (mm) | 165.00 |
|---|---|
| Width without packaging (mm) | 129.00 |
| Height without packaging (mm) | 52.00 |
| Weight without packaging (kg) | 1.087 |
| Standard product warranty (yr) | 25 |
|---|---|
| Product warranty (yr) | 25 |
| Warranty provider | SolarEdge |
