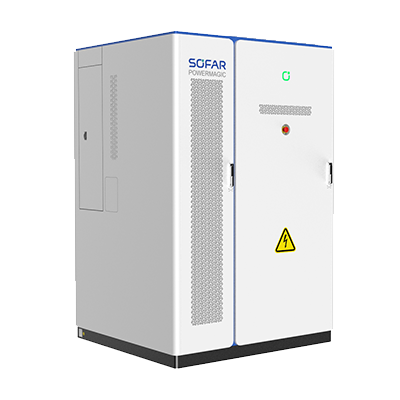

Power Magic Energy Storage Cabinet 215 kWh S1
HV storage, 215 kWh usable, 125 kVA inverter
Art-No.
0159324
Manufacturer No.
902010400052-0
Product details
Product information "Power Magic Energy Storage Cabinet 215 kWh S1"
Commissioning support must be selected in accordance with system planning and booked separately for each storage cabinet. Alternatively, certification training can be completed.
Only one Battery Cabinet of the same capacity can be used to expand this system.
Additional components and cable sets are required when connecting several systems.
Please check for the entire system (existing + new) whether additional third-party loggers or EMS are required for the required interfaces.
The manufacturer's specifications regarding installation location, assembly, installation and assembly tools, fire protection, safety distances, etc. must be checked and confirmed in advance by the customer.
Suitable lifting and transport equipment must be provided on site. The passability of transport routes and passageways must be checked in advance.
Anyone thinking of Sofar's Power Magic as a magic show with a black cylinder and integrated CEE socket has a lot of imagination to start with. In fact, behind the name lies the latest generation of commercial storage units with liquid cooling for the C&I sector. The master unit, the Energy Storage Cabinet, can be cascaded 6 times and individually expanded with 3 additional Battery Cabinets each. The possible applications therefore extend into the MWh range. In addition to the highly efficient cooling system, numerous monitoring features and a 3-stage fire extinguishing system ensure the necessary safety.
Product advantages:
• Universal outdoor installation incl. liquid cooling system
• Up to 3 additional Battery Cabinets per Energy Storage can be added
• Up to 6 Energy Storage Cabinets can be cascaded in parallel
Product features:
• Charging power inverter: 125.0 kVA
• Mains connection: 400 V, 3-phase
• Battery capacity (usable): 215 kWh
• Storage extension: up to 3 battery cabinets of the same capacity
• Extension time window: 1 year (additional Energy Storage Cabinet unlimited in time)
• Cascadable: up to 6 systems in parallel (additional components and cable sets required)
• Cell chemistry: LFP
• Communication: Ethernet
• Interfaces: CAN, RS485
• Cooling: Liquid cooling
• Fire suppression: Perfluor
• Protection class: IP55
• Dimensions: 2320 x 1450 x 1350 mm (H x W x D)
• Weight: < 2500 kg
• Included in the scope of delivery: Cable set A (connection of a single Energy Storage Cabinet)
Wichtige technische Daten
| Dangerous goods Weight (net) (kg) | 1900.000 |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Technical details
| Usable capacity (kWh) | 215.00 |
|---|---|
| Feed-in phases | 3 |
| Commercial system | yes |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Min. temperature ambient (°C) | -30 |
| AC nominal power (kW) | 125.00 |
| Protection degree | IP55 |
| Max. output current (A) | 198.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods Weight (net) (kg) | 1900.000 |
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | SOFAR |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | ESS-215KLA-SA1(EVE) |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Pal. dim. LxBxH (mm) | 1545x1445x2225 |
|---|---|
| Amount per Pallet | 1 |
| Weight incl. packaging (Kg) | 2558.500 |
| Width incl. packaging (cm) | 1445.00 |
| Length incl. packaging (cm) | 1545.00 |
| Height incl. packaging (cm) | 2220.00 |
| Height without packaging (mm) | 2200.00 |
|---|---|
| Width without packaging (mm) | 1350.00 |
| Length without packaging (mm) | 1000.00 |
| Weight without packaging (kg) | 2500.000 |
| Warranty provider | SOFAR |
|---|
