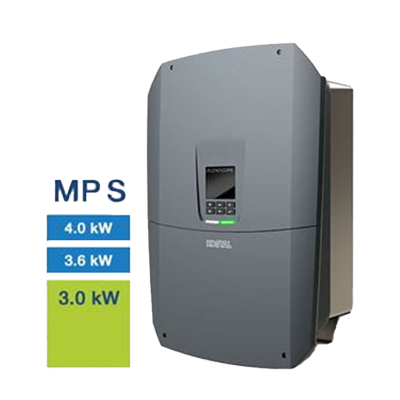

PLENTICORE MP G3 – S
Hybrid inverter, 3.0 - 4.0 kW, 1 + 1 MPPT, 1-phase
Art-No.
0159082
Manufacturer No.
12214523
Product details
Product information "PLENTICORE MP G3 – S"
The PLENTICOINs required for power and function activation must be ordered separately.
With the new single-phase PLENTICORE MP G3 series, KOSTAL completes its flexible portfolio centred around the PLENTICOIN. The in-house currency for activating device power and functions is also used here. The inverters are supplied in 2 device variants S / M with a basic output of 3.0 / 5.0* kW. PLENTICOINs can be used to activate up to 2 higher power classes, storage utilisation and the intelligent connection of the EV charger. At any time. The new device versions thus enable almost universal application freedom with reduced storage requirements.
Product benefits:
• Activate power and functions as required using PLENTICOINs
• 17 A input current per MPPT
• Full backup with external switching device
Product features:
• AC base power: 3.0
• AC power extension level 1: 4.0 (selectable without PLENTICOIN)
• AC connection: 230 V, 1-phase
• Number of MPPT: 1 + 1 (PV / Bat)
• MPPT input voltage: 75 - 900 V
• Overvoltage protection: DC type 2 can be added as an option
• Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out
• Protection class: IP65
• Cooling: passive
• Dimensions: 561 x 409 x 237 mm (H x W x D)
• Weight: 18.6 kg
Adaptations without PLENTICOINs:
The power extension for version S and the basic power for version M are freely selectable to a small extent, e.g. to comply with local grid connection specifications (version M with 4.6 instead of 5.0 kVA in accordance with VDE-AR-N 4105 in DE).
Activation by means of PLENTICOINs:
Increase by one power class (1 level) within the S / M device series: 1 PLENTICOIN
Increase to maximum power (2 levels) within the M appliance series: 1+1 PLENTICOIN
Activation of the storage function: 2 PLENTICOINS
Activation of comfort function (excess charging wallbox, §14a, etc.): 2 PLENTICOINS
Technical details
| Topology | transformerless |
|---|---|
| Decibel | 39 |
| Max. efficiency (%) | 97.70 |
| Charging voltage (V) | 95 - 650 |
| Interface 1 | W-Lan |
| Backup system full | yes with supply |
| Number of independent MPPT (pcs) | 2 |
| Display | with display |
| Max. generator power DC (kWp) | 4.50 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 34.00 |
| Total number of string inputs | 2 |
| Start input voltage (V) | 95 |
| European efficiency (%) | 96.50 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current per MPPT (A). | 17 |
| Min. voltage range input (V) | 75 |
| Battery Connection | AC/DC |
| Rapid shutdown | no |
| Max. short circuit current (A) total | 47.60 |
| Surge protection AC | no |
| Max. short circuit current per MPPT (A) | 23,8 |
| Min. temperature ambient (°C) | -20 |
| Battery voltage | High Voltage |
| Max. AC power (kVA) | 3.00 |
| AC nominal power (kW) | 3.00 |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 800.00 |
| Protection degree | IP55 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Feed-in phases | 1 |
| MPP min. voltage range input (V) | 85.00 |
| Shadow management | yes |
| Max. output current (A) | 13.00 |
| DC connector type | SUNCLIX |
| Charging current (A) | 17.00 |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer item name | PLENTICORE MP S G3 |
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer | Kostal |
| Width incl. packaging (cm) | 48.50 |
|---|---|
| Height incl. packaging (cm) | 29.00 |
| Pal. dim. LxBxH (mm) | 1300x800x1200 |
| Pal. weight (kg) | 221.20 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 65.00 |
| Weight incl. packaging (Kg) | 19.600 |
| Amount per Pallet | 10 |
| Width without packaging (mm) | 409.00 |
|---|---|
| Weight without packaging (kg) | 18.600 |
| Height without packaging (mm) | 237.00 |
| Length without packaging (mm) | 561.00 |
| Standard product warranty (yr) | 5 |
|---|---|
| Warranty provider | Kostal |
