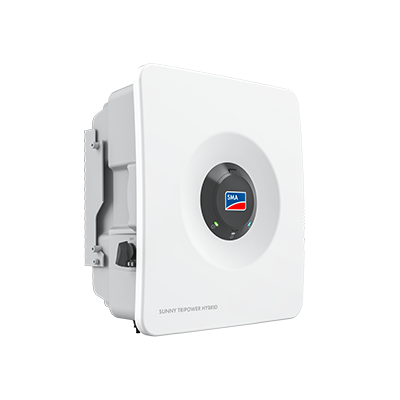

Home Storage 9.8 + Sunny Tripower Hybrid X 10
HV storage system, 9.84 kWh usable, 3-phase
Art-No.
0164900
Product details
Product information "Home Storage 9.8 + Sunny Tripower Hybrid X 10"
The SMA Sunny Home Manager 2.0 is required to use the backup function and parallel connection.
With the Sunny Tripower Hybrid X-60 series, SMA offers highly attractive system solutions for homes. It pairs perfectly with SMA’s in-house Home Storage system. These compact powerhouses feature an integrated BMS and up to 8000 charge cycles, ensuring quick installation and intensive use. With up to 5 battery modules at 3.2 kWh each, a total of 16.4 kWh of usable storage capacity is available for every energy scenario. The system can be expanded at any time as needed. The System Manager integrated into the inverter simplifies the connection of additional components*. The same applies to the comprehensive package of integrated interfaces for the easy implementation of all standard control requirements. By adding the SMA Backup Box / Kit for the STPH-X series, it is also possible to switch the entire house connection up to 63 amps to backup power mode**. As a small backup solution, a power outlet can also be connected directly to the device.
Product advantages:
• Quick and easy commissioning with the SMA 360° app
• Integrated System Manager
• Backup power operation with SMA STPH X Backup Box / Kit
• Integrated BMS per battery unit
• 8000 charge cycles and a 10-year warranty upon registration
Product features System:
• AC rated power: 10.0 kW
• Feed-in phases: 3
• AC grid voltage: 400 V
• Number of MPP trackers: 3
• Max. DC input voltage: 1000 V
• DC surge protection: Type 1+2
• AC surge protection: Type 2
• AFCI arc detection: yes
• DC connector type: Sunclix (PV) / Stäubli MC4 EVO2 (Bat)
• Interfaces: Wi-Fi, 2 x Ethernet, CAN, 6 x DI (FRE)
• Voltage level to battery: High Voltage
• Backup: yes (direct connection of a socket + house connection with SMA STPH X Backup Box / Kit)
• Protection class: IP65
• Cooling: passive
• Weight: 33.5 kg
• Dimensions: 467 x 555 x 239 mm
• Warranty: 5 years (10 years after online registration)
Product features Storage:
• Capacity (usable): 9.84 kWh
• Output voltage: 288 V
• Max. charge/discharge current: 36 A
• Cell chemistry: LFP (lithium iron phosphate)
• Time window extension: up to 2 years
• Place of installation: indoor / outdoor
• Mounting: wall (included), floor (to be ordered separately)
• Protection class: IP65
• Cooling: passive
• Dimensions: 610 x 1455 x 214,6 mm
• Total weight: 114.0 kg
*please refer to the manufacturer’s documentation for exact details.
**the power available during backup mode depends on the inverters installed in the system.
Scope of delivery:
• 1 x SMA Sunny Tripower Hybrid X 10-60 (item 0164737)
• 1 x SMA Sunny Home Manager 2.0 (item 0126650)
• 3 x SMA Home Storage, storage module (item 0154631)
Caution
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Dangerous goods Weight (net) (kg) | 66.000 |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
Home Manager 2.00126650
-
Home Storage 3.20154631
-
Home Manager 2.00126650
-
Home Storage 3.20154631
Technical details
| Topology | transformerless |
|---|---|
| Max. input current DC (A) total | 54.00 |
| Backup system full | yes with supply |
| Protection degree | IP65 |
| AC nominal power (kW) | 10.00 |
| Max. output current (A) | 15.20 |
| MPP max. voltage range input (V) | 850.00 |
| European efficiency (%) | 97.40 |
| Max. short circuit current (A) total | 72.00 |
| Number of independent MPPT (pcs) | 3 |
| Usable capacity (kWh) | 9.84 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Max. input current per MPPT (A). | 18 |
| Max. AC power (kVA) | 10.00 |
| Capacity extendable later | yes without restriction |
| Rapid shutdown | yes |
| Display | w/o display |
| Start input voltage (V) | 100 |
| Max. generator power DC (kWp) | 15.00 |
| MPP min. voltage range input (V) | 90.00 |
| Max. short circuit current per MPPT (A) | 24 |
| Battery cell chemistry | LFP |
| Integrated DC switch | yes |
| Backup system light | yes with supply |
| Offgrid usable | no |
| Total number of string inputs | 3 |
| Contact ripple control receiver | yes |
| Arc Fault Circuit Interrupter | yes |
| Max. efficiency (%) | 98.30 |
| Surge protection DC | type 1 and type 2 |
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Dangerous goods Weight (net) (kg) | 66.000 |
| Classification code | M4 |
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | Home Storage 9.8*Sunny Tripower Hybrid X 10*Sunny Home Manager 2.0 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Intrastat country of origin | South Korea |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 171.600 |
|---|
| Weight without packaging (kg) | 147.800 |
|---|
| Warranty provider | SMA |
|---|
