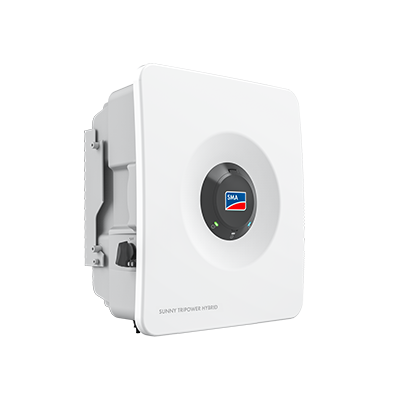

Home Storage 6.5 + Sunny Tripower Hybrid X 5
HV storage system, 6.56 kWh usable, 3-phase
Art-No.
0164897
Product details
Product information "Home Storage 6.5 + Sunny Tripower Hybrid X 5"
When using the backup function and parallel connection, refer to the system configuration without the Sunny Home Manager 2.0. If the Sunny Home Manager 2.0 is required, it must be defined as a simple measurement point subordinate to the STP Hybrid X.
With the Sunny Tripower Hybrid X-60 series, SMA offers highly attractive system solutions for homes. It pairs perfectly with SMA’s in-house Home Storage system. These compact powerhouses feature an integrated BMS and up to 8,000 charge cycles, ensuring quick installation and intensive use. With up to 5 battery modules at 3.2 kWh each, a total of 16.4 kWh of usable storage capacity is available for every energy scenario. The system can be expanded at any time as needed. The System Manager integrated into the inverter simplifies the connection of additional components*. The same applies to the comprehensive package of integrated interfaces for the easy implementation of all standard control requirements. By adding the SMA Backup Box / Kit for the STPH-X series, it is also possible to switch the entire house connection up to 63 amps to backup power mode**. As a small backup solution, a power outlet can also be connected directly to the device.
Product advantages:
• Quick and easy commissioning with the SMA 360° app
• Integrated System Manager
• Backup power operation with SMA STPH X Backup Box / Kit
• Integrated BMS per battery unit
• 8000 charge cycles and a 10-year warranty upon registration
Product features System:
• AC rated power: 5.0 kW
• Feed-in phases: 3
• AC grid voltage: 400 V
• Number of MPP trackers: 3
• Max. DC input voltage: 1000 V
• DC surge protection: Type 1+2
• AC surge protection: Type 2
• AFCI arc detection: yes
• DC connector type: Sunclix (PV) / Stäubli MC4 EVO2 (Bat)
• Interfaces: Wi-Fi, 2 x Ethernet, CAN, 6 x DI (FRE)
• Voltage level to battery: High Voltage
• Backup: yes (direct connection of a socket + house connection with SMA STPH X Backup Box / Kit)
• Protection class: IP65
• Cooling: passive
• Weight: 33.5 kg
• Dimensions: 467 x 555 x 239 mm
• Warranty: 5 years (10 years after online registration)
Product features Storage:
• Capacity (usable): 6.56 kWh
• Output voltage: 192 V
• Max. charge/discharge current: 36 A
• Cell chemistry: LFP (lithium iron phosphate)
• Time window extension: up to 2 years
• Place of installation: indoor / outdoor
• Mounting: wall (included), floor (to be ordered separately)
• Protection class: IP65
• Cooling: passive
• Dimensions: 610 x 969 x 214,6 mm
• Total weight: 76.0 kg
*please refer to the manufacturer’s documentation for exact details.
**the power available during backup mode depends on the inverters installed in the system.
Scope of delivery:
• 1 x SMA Sunny Tripower Hybrid X 5-60 (item 0164734)
• 1 x SMA Sunny Home Manager 2.0 (item 0126650)
• 2 x SMA Home Storage, storage module (item 0154631)
Downloads
-
Sunny Tripower Hybrid X 50164734
-
Home Manager 2.00126650
-
Home Storage 3.20154631
-
Sunny Tripower Hybrid X 50164734
-
Home Manager 2.00126650
-
Home Storage 3.20154631
Technical details
| AC nominal power (kW) | 5.00 |
|---|---|
| Surge protection AC | type 2 |
| Contact ripple control receiver | yes |
| Number of independent MPPT (pcs) | 3 |
| Arc Fault Circuit Interrupter | yes |
| Surge protection DC | type 1 and type 2 |
| Decibel | 36 |
| Display | w/o display |
| Backup system light | yes with supply |
| Backup system full | yes with supply |
| European efficiency (%) | 96.00 |
| Protection degree | IP65 |
| Total number of string inputs | 3 |
| Commercial system | no |
| Integrated DC switch | yes |
| Capacity extendable later | yes without restriction |
| Max. AC power (kVA) | 5.00 |
| Max. output current (A) | 7.60 |
| Max. generator power DC (kWp) | 7.50 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 54.00 |
| Max. input current per MPPT (A). | 18 |
| Max. discharging power (kW) | 5.00 |
| Max. short circuit current (A) total | 72.00 |
| Max. short circuit current per MPPT (A) | 24 |
| MPP max. voltage range input (V) | 850.00 |
| Max. nominal charging power (kW) | 7.70 |
| Max. efficiency (%) | 98.10 |
| MPP min. voltage range input (V) | 90.00 |
| Grid protection | yes |
| Offgrid usable | no |
| Usable capacity (kWh) | 6.56 |
| Rapid shutdown | yes |
| Start input voltage (V) | 100 |
| Topology | transformerless |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 44.000 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | SMA |
| Manufacturer item name | Home Storage 6.5*Sunny Tripower Hybrid X 5*Sunny Home Manager 2.0 |
| Intrastat country of origin | South Korea |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Weight incl. packaging (Kg) | 128.100 |
|---|
| Weight without packaging (kg) | 109.800 |
|---|
| Warranty provider | SMA |
|---|
