Home Battery LV (W) 9.7
LV storage set, 9.7 kWh usable
Art-No.
0162860
Product details
Product information "Home Battery LV (W) 9.7"
Only usable in DE, AT, BE, NL, LU.
This model is not compatible with the Home Battery 4.6.
The powerhouses of the Home Battery LV 4.85 series are compatible with the 3-phase RWB hybrids. Expandable indefinitely and reliable in every application. With up to 4 storage modules, up to 19.4 kWh of usable capacity can be achieved. Ideal for all residential applications.
Product advantages:
• All components from a single source
• Reliable compatibility thanks to a single manufacturer
• Easy installation of the entire system via SetApp
Product features:
• Battery capacity (usable): 9.7 kWh
• Storage type: Low voltage
• Nominal voltage: 44.8 - 57.6 V
• Time window expansion: unlimited (subject to availability from SolarEdge)
• Number of storage modules in one unit: 1 to 4
• Cell chemistry: LFP
• Communication: CAN
• Cooling: passive
• Protection class: IP65
• Dimensions: 995 x 725 x 245 mm (H x W x D)
• Weight: approx. 108.0 kg
Scope of delivery:

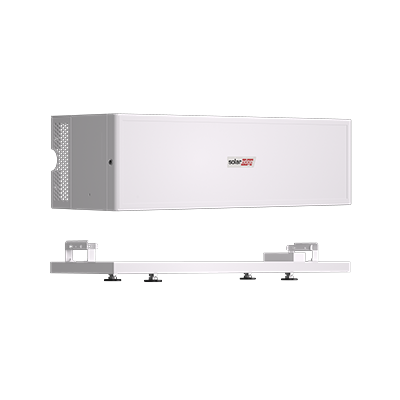

• 1 x SolarEdge Accessories Kit Home Battery LV 4,85 (W) (item 0162438)

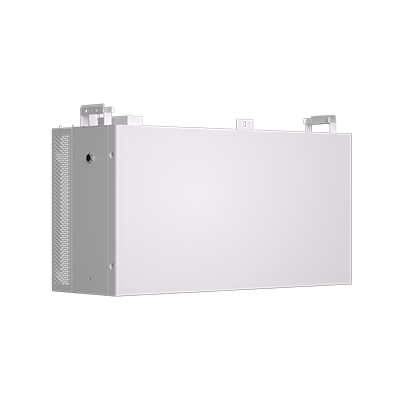

• 2 x SolarEdge Home Battery LV 4,85 (W) storage module (item 0162435)
Caution
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 101.000 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Classification code | M4 |
| Tunnel restriction code | (E) |
Technical details
| Protection degree | IP65 |
|---|---|
| Capacity extendable later | yes without restriction |
| Min. temperature ambient (°C) | -10 |
| Usable capacity (kWh) | 9.70 |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 101.000 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | SolarEdge |
| Manufacturer item name | BAT-05K48*IAC-RBAT-5KWACC-01 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Weight incl. packaging (Kg) | 134.080 |
|---|
| Length without packaging (mm) | 245.00 |
|---|---|
| Width without packaging (mm) | 725.00 |
| Height without packaging (mm) | 995.50 |
| Weight without packaging (kg) | 115.290 |
| Warranty provider | SolarEdge |
|---|
