GW50K-ET-10
Hybrid inverter, 3-ph, 4 MPPT, AFCI, w/o display
Art-No.
0158484
Manufacturer No.
ETF0050-02-01P
Product details
Product information "GW50K-ET-10"
When connecting multiple devices, the EZlink 3000 is required as a control unit.
The Goodwe STS box must be added to switch to backup power mode.

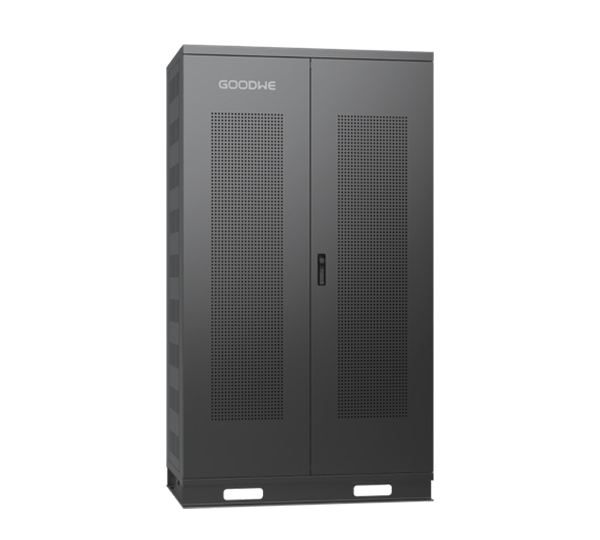

Compatible with the Lynx C storage units.
Not compatible with the Lynx C 60K storage unit.
The GM330 smart meter is included. Suitable measuring transducers still need to be added.
The new power classes of the Goodwe ET hybrid series with 40 / 50 kW are clearly aimed at commercial and industrial applications. The corresponding equipment with up to 4 MPP trackers, high input currents, overvoltage protection and AFCI provides the necessary flexibility. The system can be used both grid-connected and off-grid and can also be connected in parallel. Goodwe provides the large ETs with Lynx C commercial storage in various capacity versions. This means that the system can be used to realise various scenarios such as self-consumption, peak shaving, time-of-use and grid support. Combined with the STS box (Static Transfer Switch), the usual reliable switching to UPS level is also provided in backup operation.
Product advantages:
• Hybrids in new, attractive performance classes
• Reliable emergency power with the STS-Box
• Up to 42 A input current per MPPT
• Overvoltage protection DC type 1+2 / AC type 2 integrated
• WIFI-LAN dongle + Smart Meter GM330 included in the scope of delivery
Product features:
• AC power: 50 kW
• Mains connection: 400V, 3-phase
• Number of MPPT: 4
• DC input current per MPPT: 42+32+42+32 A
• Storage connections: 1
• Communication: Wifi, LAN, 4G, RS485
• Protection class: IP66
• Cooling: active
• Dimensions: 520 x 660 x 260 mm (W x H x D)
• Weight: 65.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Total number of string inputs | 8 |
| Max. input current DC (A) total | 148.00 |
| Max. short circuit current per MPPT (A) | 55\/42\/55\/42 |
| Max. AC power (kVA) | 55.00 |
| Interface 2 | W-Lan |
| Charging voltage (V) | 200 - 800 |
| Protection degree | IP66 |
| Start input voltage (V) | 200 |
| MPP max. voltage range input (V) | 850.00 |
| Number of independent MPPT (pcs) | 4 |
| Min. temperature ambient (°C) | -35 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| MPP min. voltage range input (V) | 165.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Battery Connection | DC |
| Max. output current (A) | 75.80 |
| European efficiency (%) | 97.50 |
| Max. short circuit current (A) total | 194.00 |
| Display | w/o display |
| Charging current (A) | 100.00 |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Backup system light | yes with supply |
| Arc Fault Circuit Interrupter | yes |
| Max. input current per MPPT (A). | 42\/32\/42\/32 |
| AC nominal power (kW) | 50.00 |
| Max. generator power DC (kWp) | 75.00 |
| Surge protection DC | type 1 and type 2 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | GoodWe |
| Manufacturer item name | GW50K-ET-10 |
| Weight incl. packaging (Kg) | 74.400 |
|---|---|
| Height incl. packaging (cm) | 50.00 |
| Width incl. packaging (cm) | 92.00 |
| Length incl. packaging (cm) | 135.00 |
| Width without packaging (mm) | 520.00 |
|---|---|
| Length without packaging (mm) | 260.00 |
| Height without packaging (mm) | 660.00 |
| Weight without packaging (kg) | 65.000 |
| Warranty provider | GoodWe |
|---|---|
| Standard product warranty (yr) | 5 |
| Product warranty (yr) | 5 |
