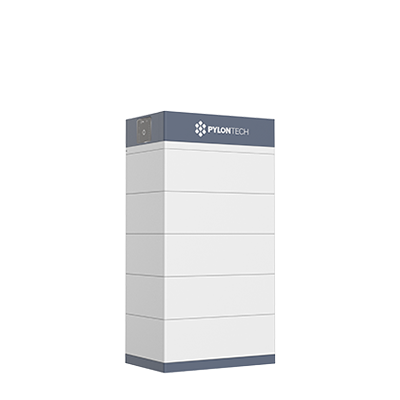

Force-H3 24.3
HV storage, 24.32 kWh usable
Art-No.
0161948
Product details
Product information "Force-H3 24.3"
Observe the manufacturer's specifications regarding expansion and compatibility.
Compact, reliable, and powerful - these are the new Force H3 high-voltage storage systems from Pylontech. With their proven and efficient stackable design, modeled on the H1 + H2 series, these powerhouses always find a place. With their expandable battery modules offering up to 34.01 kWh of usable capacity, they are ideal for home and small commercial applications.
Product advantages:
• Efficient, compact stackable design
Product features Storage:
• Battery capacity (usable): 24.32 kWh
• Depth of discharge (DoD): 95%
• Time window extension: up to 2 years
• Cell chemistry: LFP
• Nominal voltage: 512.0 V
• Protection class: IP55
• Dimensions: 1040 x 540 x 350 mm (H x W x D)
• Weight: BMS + base: 14.0 kg, 5 x storage units, 39.0 kg each
Scope of delivery:
• 1 x Pylontech H3 BMS (item 0159943)
• 5 x Pylontech Force-H3 storage module (item 0154119)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 195.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
FORCE-H3 FH100500154119
-
FORCE-H3 FC1000 BMS0159943
Technical details
| Min. temperature ambient (°C) | -10 |
|---|---|
| Usable capacity (kWh) | 24.32 |
| Capacity extendable later | yes with time restriction |
| Battery cell chemistry | LFP |
| Protection degree | IP55 |
| Nominal voltage DC (V) | 512.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer item name | FH10050*FC1000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods Weight (net) (kg) | 195.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Manufacturer | Pylontech |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 248.000 |
|---|
| Weight without packaging (kg) | 209.000 |
|---|---|
| Width without packaging (mm) | 35.00 |
| Height without packaging (mm) | 104.00 |
| Length without packaging (mm) | 54.00 |
| Standard product warranty (yr) | 10 |
|---|---|
| Warranty provider | Pylontech |
