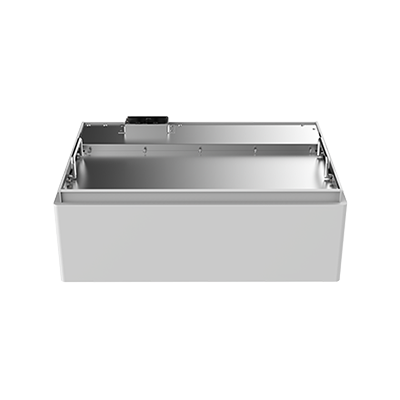

FORCE-H3 FH10050

Product details

Product information "FORCE-H3 FH10050"

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II


Observe the manufacturer's specifications regarding expansion and compatibility.

Compact, reliable and powerful – these are the new Force H3 high-voltage storage systems from Pylontech. With their proven and efficient stackable design, modelled on the H1 + H2 series, these powerhouses always find a place. With their expandable battery modules offering up to 34.01 kWh of usable capacity, they are ideal for home and small commercial applications.


Product features Storage:

•    Usable battery capacity: 4.85 kWh

•    Storage type: High-voltage

•    Nominal voltage: 51.2 V

•    Time window extension: up to 2 years (to be clarified)

•    Number of storage modules in one unit: 2 to 7

•    Cell chemistry: LFP

•    Cooling: passive

•    Protection class: IP55

•    Dimensions: 170 x 540 x 350 mm (H x W x D)

•    Weight: 39.0 kg

Wichtige technische Daten

Dangerous goods transportation category 2
Dangerous goods Weight (net) (kg) 39.000
Dangerous goods description LITHIUM ION BATTERIES
Tunnel restriction code (E)
Classification code M4
Dangerous goods class 9
Dangerous goods packaging type 4G
UN No. 3480

Technical details

Nominal Capacity (Ah) 50.00
Max. output current discharging (A) 50.00
Min. temperature ambient (°C) -10
Capacity extendable later yes with time restriction
Battery voltage High Voltage
Battery cell chemistry LFP
Usable capacity (kWh) 5.12
Nominal voltage DC (V) 102.40
Protection degree IP55
Max. output current charging (A) 50.00
Intrastat country of origin China
Dangerous goods transportation category 2
Dangerous goods Weight (net) (kg) 39.000
Dangerous goods description LITHIUM ION BATTERIES
Tunnel restriction code (E)
Classification code M4
Intrastat product number (HS-code) 85076000
Manufacturer item name FH10050
Dangerous goods class 9
Dangerous goods packaging type 4G
Manufacturer Pylontech
UN No. 3480
Length incl. packaging (cm) 59.00
Amount p. Cont. 220
Pal. dim. LxBxH (mm) 1150x1000
Pack. material cardboard box
Weight incl. packaging (Kg) 45.000
Pal. weight (kg) 550.00
Height incl. packaging (cm) 24.00
Amount Pal. p. Cont. 22
Width incl. packaging (cm) 38.00
Amount per Pallet 10
Weight without packaging (kg) 39.000
Width without packaging (mm) 350.00
Length without packaging (mm) 540.00
Height without packaging (mm) 170.00
Warranty provider Pylontech
Product warranty (yr) 10

Accessoires

0159943
FORCE-H3 FC1000 BMS HV storage controller + socket
Request price
