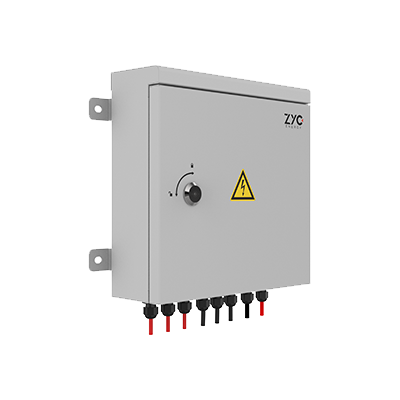

Combiner box for 3 storage towers
DC voltage: 1000 V, current per port: 30 A
Art-No.
0159280
Manufacturer No.
ZYC DC Box 600
Product details
Product information "Combiner box for 3 storage towers"
With the ZYC combiner box, up to 3 storage towers can be interconnected quickly and easily. This enables up to 86.4 kWh of usable capacity and applications in the residential to small commercial segment.
Product features:
• Max. System voltage: 1000 V
• Max. input current per connection: 30 A
• Max. total output current: 30 A
• Number of inputs: 3
• Type of DC connections: Cable lug on copper rail
• Protection class: IP 55
• Weight: 5.0 kg
• Dimensions: 360 x 326 x 102 mm (L x W x H)
Technical details
| Number battery connections | 3 |
|---|---|
| Number inverter connections | 1 |
| Protection degree | IP55 |
| Max. output current (A) | 30.00 |
| Nominal current (A) | 30.00 |
| Manufacturer | ZYC Energy |
|---|---|
| Manufacturer item name | Combiner Box |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85371098 |
| Length incl. packaging (cm) | 40.50 |
|---|---|
| Width incl. packaging (cm) | 38.50 |
| Height incl. packaging (cm) | 17.50 |
| Weight incl. packaging (Kg) | 5.800 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 326.00 |
|---|---|
| Width without packaging (mm) | 360.00 |
| Height without packaging (mm) | 102.00 |
| Weight without packaging (kg) | 5.000 |
| Warranty provider | ZYC Energy |
|---|---|
| Standard product warranty (yr) | 5 |
