The manufacturer's specifications regarding installation location, assembly, installation and assembly tools, fire protection, safety distances, etc. must be checked and confirmed in advance by the customer.

Please check for the entire system (existing + new) whether additional third-party loggers or EMS are required for the required interfaces.

This product cannot be used for backup and off-grid applications.

Suitable lifting and transport equipment must be provided on site. The passability of transport routes and passageways must be checked in advance.

The following accessories must be added to each system:

• 0131787 (Solar Edge Meter SE-MTR-3Y-400V-A-DIN-RAIL)

• 0128234 (CORE CURRENT TRANSFORMER SE-CTB-4X4-2000)

• 0128235 (CORE CURRENT TRANSFORMER SE-CTB-4X4.5-3000)

• 0128233 (CORE CURRENT TRANSFORMER SE-CTB-4X4-1200)

The PCS Battery Inverter, available in 30 kW or 50 kW models, remains the centerpiece of the SolarEdge CSS-OD Commercial Storage System, which now features 107 kWh of usable capacity and a climate-controlled storage cabinet. Parallel connection enables systems up to 2.1 MWh. A comprehensive monitoring system, LFP cell technology, and a multi-sensor and fire protection concept ensure safety. The ideal system component for commercial applications of any size. Seamless integration into the proven SolarEdge communication system is a given.

Product advantages:

• Optimal integration through a single manufacturer

• Visualization on the SolarEdge Monitoring Platform

• Maximum flexibility through comprehensive scalability

• Integrated fire protection system

Product features System:

• AC rated power: 49.9 kW

• Feed-in phases: 3

• AC grid voltage: 400 V

• Number of battery connections: 2

• Battery charging current: 2 x 80 A

• Communication: RS485, CAN

• Cooling: active

• Protection class: IP66

• Dimensions: 650 x 900 x 322 mm

• Weight: 80.0 kg

• Warranty System: 10 years

Product features Storage:

• Capacity (usable): 102.14 kWh

• Storage type: High-voltage

• Max. charging rate: 0.5 C

• Cell chemistry: LFP

• Communication: RS485

• Installation location: Indoor / Outdoor

• Protection class: IP54

• Cooling: Air conditioning

• Dimensions: 1050 x 1371 x 2085 mm

• Total weight: 1435.0 kg

Scope of delivery:

• 1 x SolarEdge CSS-OU-107 Battery Cabinet (item 0164572)

• 1 x SolarEdge battery inverter PCS050B (item 0164574)

• 1 x SolarEdge Cable-Kit for CSS-OD 107 (item 0164575)

• 1 x SolarEdge ONE Controller Commercial (item 0156957)

Caution


Dangerous goods transportation category	2
Dangerous goods Weight (net) (kg)	1435.000
Dangerous goods description	LITHIUM ION BATTERIES
Tunnel restriction code	(E)
Classification code	M4
Dangerous goods class	9
Dangerous goods packaging type	4G
UN No.	3480

Downloads

ONE Controller Commercial0156957

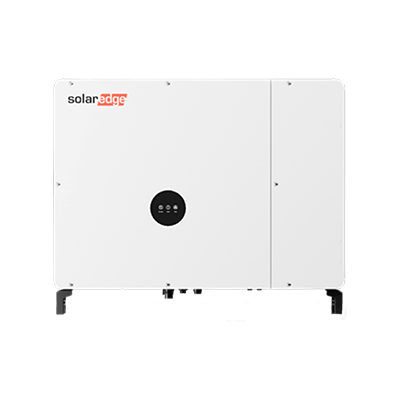

PCS050B for CSS-OD-107 Commercial Storage, 50 kW0164574

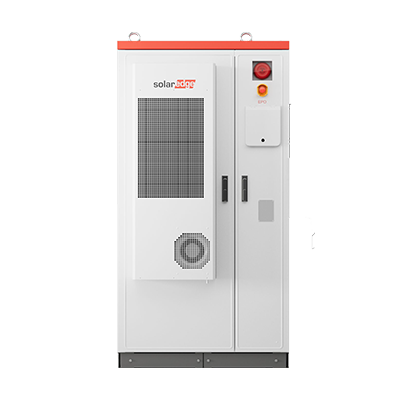

CSS-OU-107 Battery Cabinet, Commercial Storage0164572

Technical details


Topology	transformerless
Min. temperature ambient (°C)	-25
Max. AC power (kVA)	49.90
AC nominal power (kW)	49.90
Commercial system	yes
Display	w/o display
Protection degree	IP54
Usable capacity (kWh)	102.14
Battery cell chemistry	LFP
Max. output current (A)	144.00
Max. C-rate	0.50


Intrastat country of origin	China
Dangerous goods transportation category	2
Dangerous goods Weight (net) (kg)	1435.000
Dangerous goods description	LITHIUM ION BATTERIES
Tunnel restriction code	(E)
Classification code	M4
Intrastat product number (HS-code)	85076000
Manufacturer	SolarEdge
Dangerous goods class	9
Dangerous goods packaging type	4G
Manufacturer item name	CSS-OU-107PCS050BONE Controller*CSS-01-C-P050G2-01
UN No.	3480


Weight incl. packaging (Kg)	1727.380


Weight without packaging (kg)	1519.250


Warranty provider	SolarEdge
Standard product warranty (yr)	10
