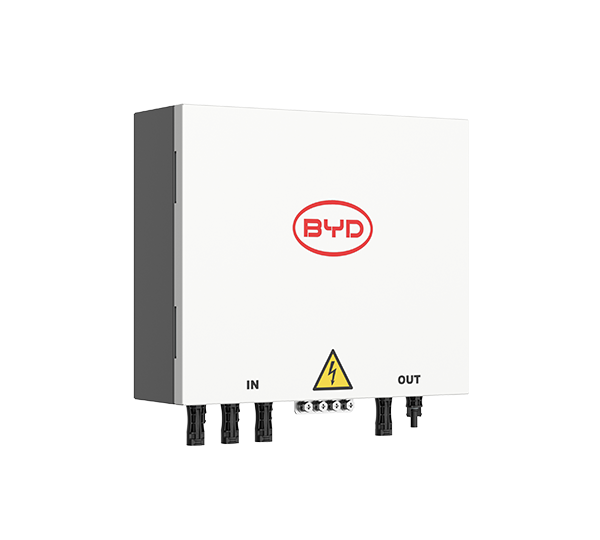

Battery-Box Combiner Box Plus
1000 V DC, 50 A per port, up to 3 units
Art-No.
0163470
Manufacturer No.
18862533-00
Product details
Product information "Battery-Box Combiner Box Plus"
Only storage units of the same series and capacity (number of storage modules) can be connected.
When retrofitting, ensure that the same state of charge (SOC) is used and that the process sequences are followed according to the instructions.
Compatibility should be checked using the BYD Compatible Inverter List (link to http://www.eft-systems.de/de/downloads).
The BYD HV Combiner Box Plus allows for the quick and efficient connection of up to three storage units to a single inverter. With a maximum current of 50 amps per connection, it can be used with both older HVS/HVM and current HVS+/HVM+/HBE/HVB series. Connecting only identical models and capacities is mandatory.
Product Specifications:
• Compatible Storage Series: HVS/HVM/HVB/HVS+/HVM+/HVE
• Max. DC System Voltage: 1000 V
• Max. Input Current per Connection: 50 A
• Max. Total Output Current: 70 A
• Number of Inputs: 3
• Protection Class: IP 65
• Weight: 8.0 kg
• Dimensions: 350 x 300 x 115 mm
Technical details
| Nominal current (A) | 50.00 |
|---|---|
| Max. output current (A) | 70.00 |
| Protection degree | IP65 |
| Battery voltage | High Voltage |
| Number battery connections | 3 |
| Number inverter connections | 1 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | CBH-70A |
| Manufacturer | BYD |
| Intrastat product number (HS-code) | 85371091 |
| Pal. dim. LxBxH (mm) | 1000x760x1968 |
|---|---|
| Weight incl. packaging (Kg) | 10.000 |
| Pack. material | cardboard box |
| Amount per Pallet | 24 |
| Length incl. packaging (cm) | 333.00 |
| Width incl. packaging (cm) | 467.00 |
| Height incl. packaging (cm) | 459.00 |
| Length without packaging (mm) | 300.00 |
|---|---|
| Weight without packaging (kg) | 7.800 |
| Width without packaging (mm) | 350.00 |
| Height without packaging (mm) | 114.20 |
| Standard product warranty (yr) | 10 |
|---|---|
| Warranty provider | BYD |
