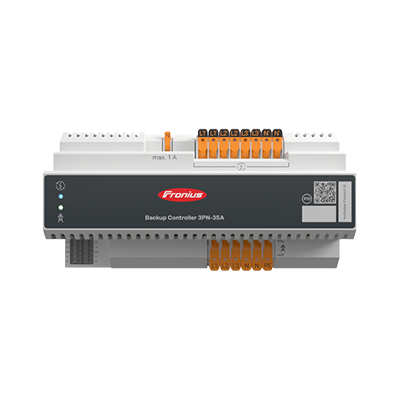

Backup Controller 3PN-35A for GEN24 / Verto Plus*
All-pole disconnection, 3-phase, 35A
Art-No.
0159753
Manufacturer No.
4,240,048,CK
Product details
Product information "Backup Controller 3PN-35A for GEN24 / Verto Plus*"
Overcurrent and overvoltage protection for the backup power consumers must be installed in a suitable location to maintain the protective function.
A power cut like this is always inconvenient, one swift digger driver and bang - the whole street goes dark. Even if you don't really want to plan for such a situation, the technical possibility of an independent backup power supply creates an unimagined sense of security. Both the GEN24 plus and the new Verto Plus series can be conveniently supplemented with the Fronius Backup Controller at any time. With the automatically switching unit, all important consumers are quickly supplied with power again in the event of a power failure. For all those for whom 3 kW emergency power via the Fronius PV Point is not quite enough.
Product advantages:
• Automatic all-pole switching - suitable for DE
• Compatible with Fronius Primo GEN24, Symo GEN24 plus and Verto Plus*
Product features:
• Nominal output: 24 kW
• Max. Continuous current: 35 A
• AC connection: 400 V, 3-phase
• Type of mains disconnection: all-pole (3P+N)
• Mains type: can be used for all mains types
• Max. Cable cross-section: 10 mm² (push-in terminals)
• Mounting: on top-hat rail in switch cabinet
• Protection class: IP20
• Dimensions: 11 HP / 100 x 198 x 66 mm (HxWxD)
• Included in the scope of delivery: mandatory information sticker ‘Emergency power supply’
*Due to the design of the Fronius Symo GEN24 3.0 - 5.0 and all Primo GEN24-US versions, a full-backup solution cannot be implemented. Due to the current limit of 35 A, only the 15-20 kW power classes of the Verto Plus devices can be used.
Authorised for use in the following countries:
All EU countries, Australia, Turkey, Argentina, Chile, Uruguay and Peru.
The requirement for mains disconnection (3P or 3PN all-pole) must be clarified with the local mains operator.
Technical details
| Nominal current (A) | 35.00 |
|---|
| Manufacturer item name | Backup Controller 3PN-35A |
|---|---|
| Intrastat product number (HS-code) | 85363090 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Pack. material | cardboard box |
|---|---|
| Height incl. packaging (cm) | 9.00 |
| Amount per Pallet | 5 |
| Length incl. packaging (cm) | 34.00 |
| Width incl. packaging (cm) | 26.50 |
| Weight incl. packaging (Kg) | 1.142 |
| Height without packaging (mm) | 66.00 |
|---|---|
| Weight without packaging (kg) | 0.856 |
| Width without packaging (mm) | 198.00 |
| Length without packaging (mm) | 100.00 |
| Warranty provider | Fronius |
|---|---|
| Standard product warranty (yr) | 2 |
