AXIstorage Li SV2 Energypack
HV storage module, 3.37 kWh usable
Art-No.
0150761
Manufacturer No.
AY10731
Product details
Product information "AXIstorage Li SV2 Energypack"
Observe the manufacturer's specifications regarding expansion and compatibility.

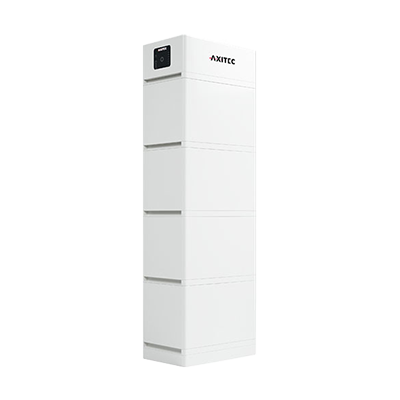

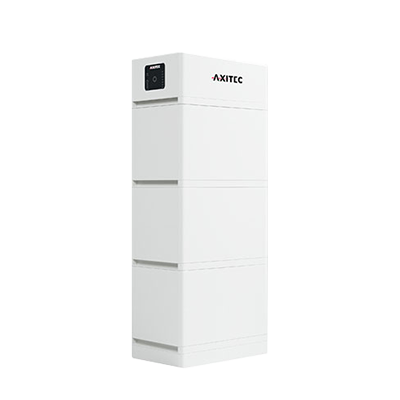

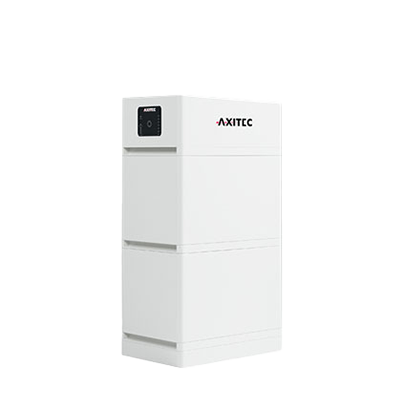

Reliable, compact and powerful - the AXIstorage Li SV1 + SV2 high-voltage storage systems from Axitec shine in every situation. Thanks to the proven and efficient stacking design, the power packs always find a place. The flexibly expandable battery modules with up to 23.6 kWh usable capacity are ideal for use in the home and small commercial sector.
Product features:
• Usable battery capacity: 3.37 kWh
• Extension window: up to 5 years
• Cell chemistry: LFP
• Nominal voltage: 96.0 V
• Protection class: IP55
• Dimensions: 296 x 450 x 296 mm (H x W x D)
• Weight: 35.5 kg
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods Weight (net) (kg) | 35.000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
Technical details
| Usable capacity (kWh) | 3.37 |
|---|---|
| Max. output current discharging (A) | 18.50 |
| Max. output current charging (A) | 18.50 |
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Nominal Capacity (Ah) | 37.00 |
| Battery cell chemistry | LFP |
| Protection degree | IP55 |
| Nominal voltage DC (V) | 96.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | AXITEC |
| Dangerous goods transportation category | 2 |
| Dangerous goods Weight (net) (kg) | 35.000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Manufacturer item name | AXIstorage Li SV2 3.37kWh |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Amount p. Cont. | 448 |
|---|---|
| Amount Pal. p. Cont. | 28 |
| Length incl. packaging (cm) | 77.00 |
| Amount per Pallet | 16 |
| Weight incl. packaging (Kg) | 37.000 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 41.00 |
| Pal. dim. LxBxH (mm) | 800x1200x1800 |
| Width incl. packaging (cm) | 54.00 |
| Pal. weight (kg) | 579.00 |
| Height without packaging (mm) | 296.00 |
|---|---|
| Width without packaging (mm) | 296.00 |
| Weight without packaging (kg) | 35.000 |
| Length without packaging (mm) | 450.00 |
