AXIstorage Li SV1 Energypack
HV storage module, 3.37 kWh usable
Art-No.
0150754
Manufacturer No.
AY10730
Product details
Product information "AXIstorage Li SV1 Energypack"
Observe the manufacturer's specifications regarding expansion and compatibility.

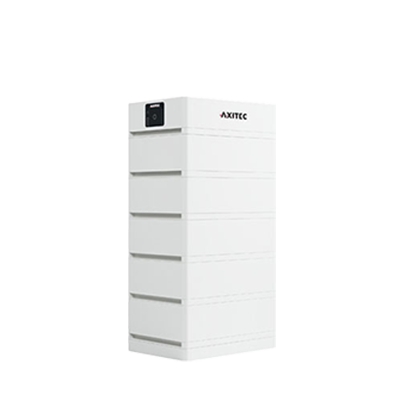

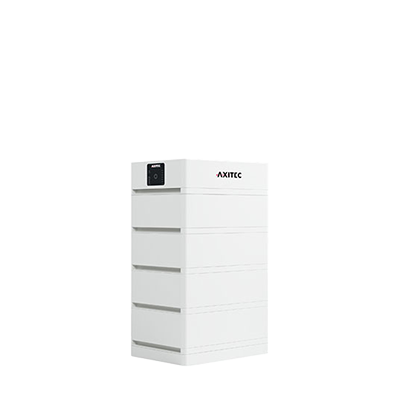

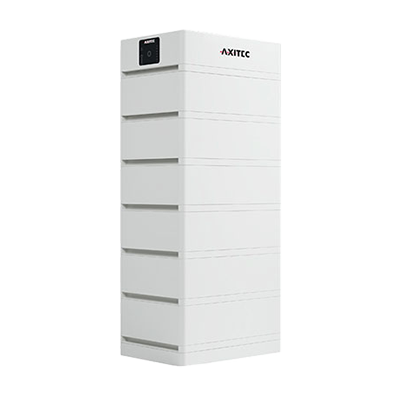

Reliable, compact and powerful - the AXIstorage Li SV1 + SV2 high-voltage storage systems from Axitec shine in every situation. Thanks to the proven and efficient stacking design, the power packs always find a place. The flexibly expandable battery modules with up to 23.6 kWh usable capacity are ideal for use in the home and small commercial sector.
Product features:
• Usable battery capacity: 3.37 kWh
• Extension window: up to 5 years
• Cell chemistry: LFP
• Nominal voltage: 48.0 V
• Protection class: IP55
• Dimensions: 170 x 600 x 380 mm (H x W x D)
• Weight: 35.0 kg
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 36.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
Technical details
| Nominal Capacity (Ah) | 74.00 |
|---|---|
| Usable capacity (kWh) | 3.37 |
| Max. output current charging (A) | 37.00 |
| Cell chemistry | LFP |
| Max. output current discharging (A) | 37.00 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Protection degree | IP55 |
| Nominal voltage DC (V) | 48.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | AXITEC |
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 36.000 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | AXIstorage Li SV1 3.37kWh |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Width incl. packaging (cm) | 70.00 |
|---|---|
| Pack. material | cardboard box |
| Pal. dim. LxBxH (mm) | 1400x1100x1200 |
| Weight incl. packaging (Kg) | 39.000 |
| Amount p. Cont. | 364 |
| Length incl. packaging (cm) | 50.00 |
| Pal. weight (kg) | 1101.00 |
| Height incl. packaging (cm) | 25.00 |
| Amount Pal. p. Cont. | 13 |
| Amount per Pallet | 28 |
| Width without packaging (mm) | 380.00 |
|---|---|
| Weight without packaging (kg) | 36.000 |
| Length without packaging (mm) | 600.00 |
| Height without packaging (mm) | 170.00 |
