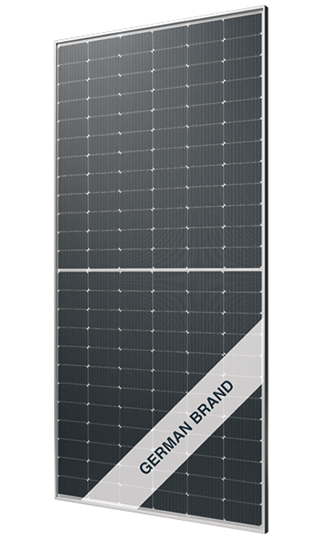

AXIbiperfect GXXL WS AC-595TGB/144WS
Glass-glass, bifacial, MC4 Evo 2A
Art-No.
0164185
Manufacturer No.
AY10976
Product details
Product information "AXIbiperfect GXXL WS AC-595TGB/144WS"
The Axitec AXIbiperfect series PV module generates 595 Wp of power and offers up to 30% more output thanks to its revolutionary bifacial technology. This technology ensures sustainable energy generation and maximum energy efficiency by utilizing both the front and back surfaces of the PV module. The solar module also features enhanced safety thanks to improved fire protection. An impressive 30-year warranty underscores the exceptional quality and reliability of this product.
Product Benefits:
• Up to 30% more power thanks to bifacial technology
• Increased safety through improved fire protection
• 30-year performance and product warranty
Product Specifications:
• Nominal power Pmax: 595 Wp
• Cell type: monocrystalline
• Bifacial: Yes
• Cell contacting: 18 busbars
• Frame type: framed
• Frame color: silver
• Backsheet color (cell side): white
• Max. system voltage: 1500 V
• Connector: MC4 Evo 2A
• Cable length: 1.3 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire rating: C (UL 790)
• Dimensions: 2278 x 1134 x 30 mm
• Weight: 31.2 kg
• Warranty: 30-year performance warranty and 30-year product warranty
Technical details
| Connector type | MC4 Evo 2A |
|---|---|
| Module efficiency (%) | 23.03 |
| Max. reverse current (A) | 30 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Open circuit voltage Uoc (V) | 52.40 |
| Number of cells (pieces) | 144 |
| Max. wind speed capacity testload(Pa) | 2400 |
| Number of cells across | 6 |
| Frame colour | silver |
| Number of cells along | 24 |
| Power rating Pmax (Wp) | 595 |
| Temperature coefficient Uoc (%/C) | -0.2600 |
| Module structure | glass-glass |
| Max. surface load capacity testload(Pa) | 5400 |
| Power tolerance | +5 Wp |
| Temperature coefficient Pmpp (%/C) | -0.3100 |
| Busbars (pcs) | 18 |
| Frame type | framed |
| Cell width (mm) | 182.000 |
| Short circuit current Isc (A) | 14.28 |
| Cell type | monocrystalline |
| Cable core cross section (mm²) | 4.00 |
| Nominal current Impp (A) | 13.35 |
| Integrated module optimization | no |
| Protection degree | IP68 |
| Length of cable minus (cm) | 130.00 |
| Temperature coefficient Isc (%/C) | 0.0460 |
| Cell length (mm) | 91.875 |
| Cell cut | half cut |
| Glass thickness front side (mm) | 2.00 |
| Length of cable plus (cm) | 130.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | AXITEC |
| Manufacturer item name | AC-595TGB/144WS |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Certificate 2 | Protection Class 2 |
| Weight incl. packaging (Kg) | 31.200 |
|---|---|
| Width incl. packaging (cm) | 113.40 |
| Amount Pal. p. Cont. | 20 |
| Length incl. packaging (cm) | 227.80 |
| Pack. material | cardboard box |
| Pal. dim. LxBxH (mm) | 2350x1150x1250 |
| Height incl. packaging (cm) | 3.00 |
| Amount p. Cont. | 720 |
| Amount per Pallet | 36 |
| Pal. weight (kg) | 1160.00 |
| Length without packaging (mm) | 2278.00 |
|---|---|
| Weight without packaging (kg) | 31.200 |
| Width without packaging (mm) | 1134.00 |
| Height without packaging (mm) | 30.00 |
| Performance warranty (yr) | 30 |
|---|---|
| Initial % for linear warranty | 99 |
| Standard product warranty (yr) | 30 |
| Linear degression p.a. in % | 0,4 |
| Product warranty (yr) | 30 |
| Warranty provider | AXITEC |
