2 x Reserva 15.8 + Verto plus 33.0
Set
HV storage system, 31.48 kWh, 33.0kW, 3-phase
Art-No.
0161064
Product details
Product information "2 x Reserva 15.8 + Verto plus 33.0"
The Smart Meter included in the set does not have an interface for using dynamic electricity tariffs. If this function is required, please use the Fronius Smart Meter IP (article 0154145).

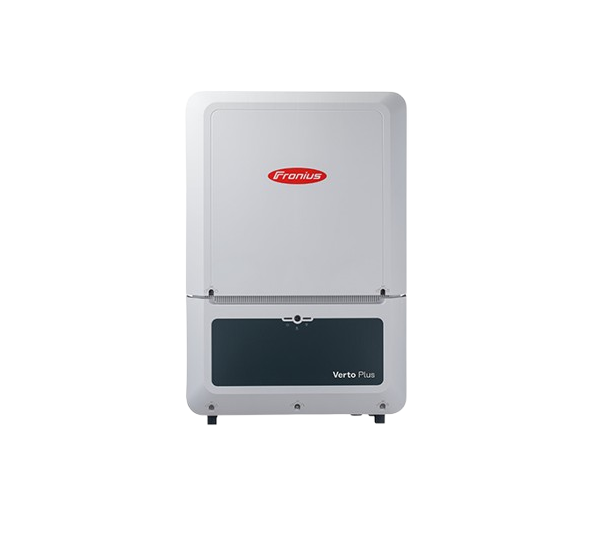

As with the Fronius GEN24 devices, the ‘plus’ makes all the difference in the new Verto series. The Verto Plus hybrid inverters are already equipped with a powerful high-voltage storage connection ex works. With 15 to 33 kW, they are the ideal system modules in the small-commercial segment. The proven complete communication equipment is complemented by AC and DC-side overvoltage protection and Fronius Arc Guard Technology. High security standards are also set for data backup with servers in Europe. Here combined with a double pack of the Reserva high-voltage storage system. In the proven stacked design, almost 15.8 kWh of usable capacity can be realised per tower. For larger storage requirements, up to 4 systems can be connected in parallel.
Product advantages:
• 28 A input current per MPPT / string
• 50 A charging current to the high-voltage storage system
• 3-phase backup current possible with Fronius Backup Switch + Controller
Product features System:
• AC nominal power: 33.0 kW
• Grid connection: 3-phase
• AC grid voltage: 400 V
• Number of MPPT: 3
• Max. DC input voltage: 1000 V
• Max. DC input current: 28 A per MPPT
• DC overvoltage protection: Type 1+2
• AC overvoltage protection: Type 2
• DC connector type: PV - Stäubli MC4, Bat - Stäubli MC4 Evo Stor
• Number of battery connections: 1
• Communication: WLAN, Ethernet
• Interfaces: 2 x RS485, 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Weight: 43.0 kg
• Dimensions: 865 x 574 x 279 mm (H x W x D)
• Warranty: 2 years + a further 3 years after free registration
Product features Storage:
• Battery capacity (usable): 31.48 kWh
• Storage type: High-voltage
• Extension window: up to 2 years
• Number of storage modules in one unit: 2 to 5
• Number of units in parallel: 2 (here in a set), up to 4 in total
• Cell chemistry: LFP
• Communication: RS485
• Cooling: passive
• Protection class: IP65
• Dimensions: 2x 1610 x 780 x 176 mm (H x W x D)
• Weight: BMS + base 19.5 kg, each storage module 33.5 kg
Summary:
The Verto Plus is Fronius' entry into the small commercial segment. Ideally complemented with a double pack of the Reserva high-voltage storage system.
Scope of delivery:
• 1 x Fronius Verto Plus 33.0 hybrid inverter (item 0159337)
• 1 x Fronius Smart Meter TS 65A-3 (item 0151650)
• 2 x Fronius Reserva BMS (item 0158879)
• 10 x Fronius Reserva storage module (item 0158880)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 335.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
Verto Plus 33.30159337
-
Reserva BMS + base0158879
-
Reserva storage module0158880
-
SMART METER TS 65A-30151650
-
Verto Plus 33.30159337
-
Reserva BMS + base0158879
-
Reserva storage module0158880
-
SMART METER TS 65A-30151650
Technical details
| Max. input current DC (A) total | 84.00 |
|---|---|
| Usable capacity (kWh) | 15.79 |
| Max. generator power DC (kWp) | 50.00 |
| MPP min. voltage range input (V) | 150.00 |
| Total number of string inputs | 6 |
| AC nominal power (kW) | 33.30 |
| Backup system full | yes with supply |
| Protection degree | IP65 |
| Start input voltage (V) | 150 |
| MPP max. voltage range input (V) | 870.00 |
| Number of independent MPPT (pcs) | 3 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Max. AC power (kVA) | 33.30 |
| Battery Connection | DC |
| Max. output current (A) | 50.50 |
| Display | w/o display |
| Min. temperature ambient (°C) | -20 |
| Battery voltage | High Voltage |
| Max. short circuit current per MPPT (A) | 50 |
| Battery cell chemistry | LFP |
| Integrated DC switch | yes |
| Backup system light | yes with supply |
| DC connector type | H4Amphenol |
| Arc Fault Circuit Interrupter | yes |
| Max. input current per MPPT (A). | 28 |
| Amount connected phases | 3 |
| Max. short circuit current (A) total | 150.00 |
| Surge protection DC | type 1 and type 2 |
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer item name | RESERVA 2x 15.8*Verto plus 33.3 SPD I+II |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods Weight (net) (kg) | 335.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 466.050 |
|---|
| Weight without packaging (kg) | 417.240 |
|---|
| Warranty provider | Fronius |
|---|
