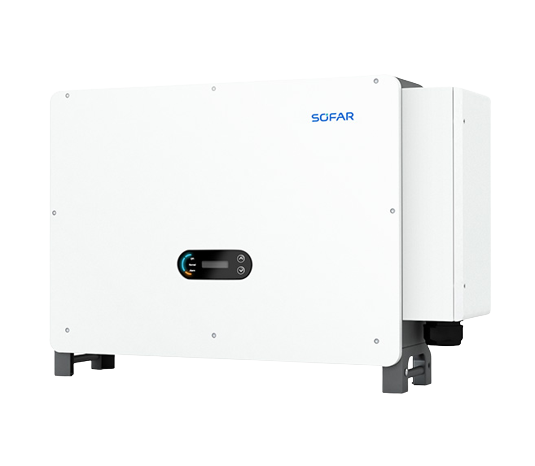

110KTLX-G4
PV-WR, 3-phase, 10 MPPT, AFCI, with display, MC4
Art-No.
0153702
Manufacturer No.
900.03600002-0
Product details
Product information "110KTLX-G4"
Our newest addition to the inverter segment, Chinese manufacturer Sofar Solar, is launching a full-fledged product range. The project inverters of the KTL series shine with a wide voltage range for high-performance module generations. Integrated AC + DC overvoltage protection, characteristic curve measurement and shadow management are part of the standard equipment.
Product advantages:
• Wide MPPT voltage range from 180 to 1000 V
• Integrated overvoltage protection AC / DC type II
• U-I characteristic scan function
• 10 year product guarantee
Product features:
• AC power: 110 kW
• Number of MPPT: 10
• DC disconnect switch: integrated
• Connection phases: 3
• Interfaces: RS485, Wifi, Bluetooth, Ethernet (optional with LAN dongle),
4 x digital in (FRE)
• Connector plug: MC4
• Protection class: IP 66
• Cooling: active
• Dimensions: 970 x 695 x 325 mm (HxWxD)
• Weight: 75.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Number of independent MPPT (pcs) | 10 |
| Max. AC power (kVA) | 110.00 |
| Max. input current DC (A) total | 400.00 |
| Interface 2 | Bluetooth |
| Protection degree | IP66 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. short circuit current (A) total | 500.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.60 |
| Step-Up converter | yes |
| AC nominal power (kW) | 110.00 |
| Max. short circuit current per MPPT (A) | 50 |
| MPP min. voltage range input (V) | 180.00 |
| Max. input current per MPPT (A). | 40 |
| Integrated DC switch | yes |
| Min. temperature ambient (°C) | -30 |
| European efficiency (%) | 98.30 |
| Max. input voltage DC (V) | 1100.00 |
| Total number of string inputs | 20 |
| Surge protection DC | type 2 |
| Max. output current (A) | 153.10 |
| Arc Fault Circuit Interrupter | yes |
| MPP max. voltage range input (V) | 1000.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SOFAR |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | SOFAR 110KTLX-G4 |
| Pal. dim. LxBxH (mm) | 1200x800x1100 |
|---|---|
| Pal. weight (kg) | 208.00 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 48.40 |
| Length incl. packaging (cm) | 117.50 |
| Width incl. packaging (cm) | 79.20 |
| Weight incl. packaging (Kg) | 110.000 |
| Weight without packaging (kg) | 75.000 |
|---|---|
| Width without packaging (mm) | 695.00 |
| Length without packaging (mm) | 970.00 |
| Height without packaging (mm) | 325.00 |
| Warranty provider | SOFAR |
|---|---|
| Product warranty (yr) | 10 |
