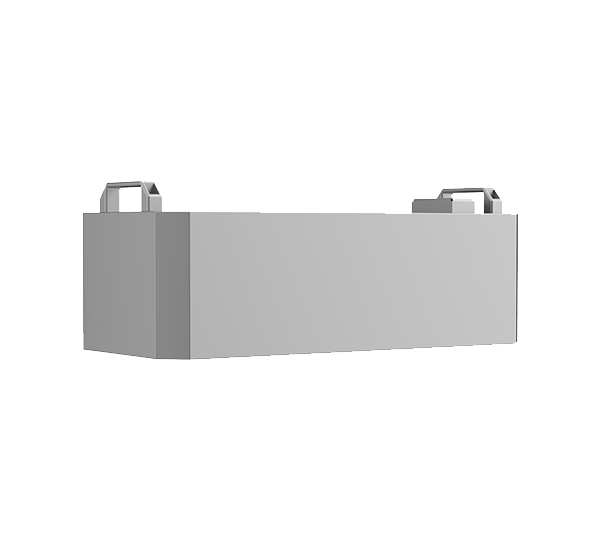

ZYC SIMPO HV 3.2
HV storage module, 3.2 kWh usable
Art. no.
6657729
Manufacturer No.
SIMPO HV-Block 3.2
Product details
Product information "ZYC SIMPO HV 3.2"
Observe the manufacturer's specifications regarding expansion and compatibility.
Wireless, screwless, carefree - this is how the installation of the new SIMPO HV storage system from ZYC works. The proven stacking concept enables up to 28.8 kWh of usable capacity per unit. And that's not all - up to 8 towers with a total of 230.4 kWh can be connected in parallel. The field of application therefore ranges from residential to small commercial systems.
Product features:
• Usable battery capacity: 3.2 kWh
• Extension time window: unlimited
• System structure: 2 - 9 storage modules
• Cascadable: up to 8 towers in parallel
• Cell chemistry: LFP
• Nominal voltage: 64.0 V
• Protection class: IP65
• Dimensions: 190 x 610 x 240 mm (H x W x D)
• Weight: 36.0 kg
Technical details
| Protection degree | IP65 |
|---|---|
| Nominal Capacity (Ah) | 50.00 |
| Usable capacity (kWh) | 3.20 |
| Min. temperature ambient (°C) | -10 |
| Capacity extendable later | yes without restriction |
| Max. output current charging (A) | 30.00 |
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Nominal voltage DC (V) | 64.00 |
| Max. output current discharging (A) | 30.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer | ZYC Energy |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 22.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Manufacturer item name | SIMPO HV-Block 3.2 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 37.380 |
|---|---|
| Width incl. packaging (cm) | 30.40 |
| Amount per Pallet | 18 |
| Height incl. packaging (cm) | 28.00 |
| Pal. dim. LxBxH (mm) | 1000x700x1800 |
| Length incl. packaging (cm) | 66.40 |
| Amount p. Cont. | 612 |
| Amount Pal. p. Cont. | 34 |
| Pal. weight (kg) | 705.00 |
| Width without packaging (mm) | 240.00 |
|---|---|
| Length without packaging (mm) | 610.00 |
| Weight without packaging (kg) | 35.880 |
| Height without packaging (mm) | 190.00 |
| Warranty provider | ZYC Energy |
|---|---|
| Product warranty (yr) | 10 |
