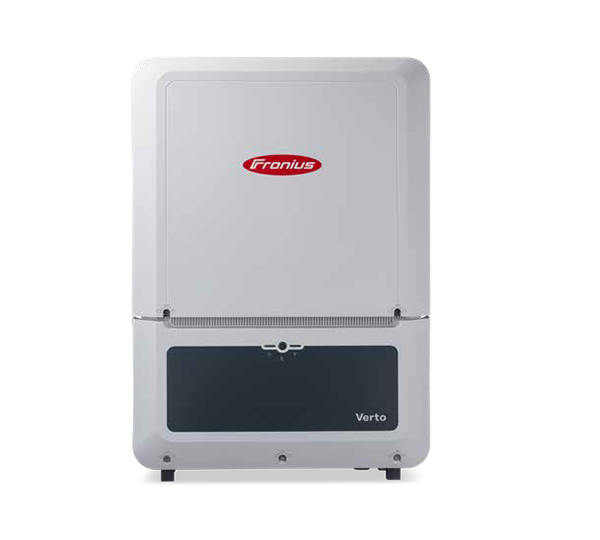

Verto 30.0
Product information "Verto 30.0"
With its new Verto series, Fronius is bringing a breath of fresh air to the power classes from 25 to 33.3 kW. High flexibility thanks to 4 MPP trackers. Maximum safety thanks to integrated arc detection Arc Guard and overvoltage protection on AC and DC connections. Thanks to open interfaces, universal application options for energy management with Wattpilot, Ohmpilot & Co. The integrated data logger also has numerous connection options for external control signals or load management.
Product advantages:
• 28 A input current per MPPT / string
• Integrated AC+DC overvoltage protection type 1+2
• Integrated AFCI arc detection
• Integrated data logger + web server
Product features:
• AC power: 29.9 kW
• AC connection: 400 V, 3-phase
• Number of MPPT: 4
• DC input current: 28 A per MPPT / string
• Connections per MPPT: 2
• DC connection: Stäubli MC4
• Communication: WLAN, LAN
• Interfaces: 2 x RS485, 6 x DI, 6 x DI / DO (FRE)
• Protection class: IP66
• Cooling: active
• Dimensions: 865 x 574 x 279 mm (H x W x D)
• Weight: 41.75 kg
• Warranty: 2 years + a further 3 years after free registration
"Technical details
| AC nominal power (kW) | 29.90 |
|---|---|
| Surge protection AC | type 2 |
| Contact ripple control receiver | yes |
| Number of independent MPPT (pcs) | 4 |
| Arc Fault Circuit Interrupter | yes |
| DC connection | MC4 |
| Surge protection DC | type 1 and type 2 |
| Decibel | 55 |
| Display | w/o display |
| Feed-in phases | 3 |
| European efficiency (%) | 97.80 |
| Protection degree | IP66 |
| Total number of string inputs | 8 |
| Integrated DC switch | yes |
| Max. AC power (kVA) | 29.90 |
| Max. output current (A) | 45.50 |
| Max. generator power DC (kWp) | 45.50 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 112.00 |
| Max. input current per MPPT (A). | 28 |
| Max. short circuit current (A) total | 150.00 |
| Max. short circuit current per MPPT (A) | 50 |
| MPP max. voltage range input (V) | 870.00 |
| Max. efficiency (%) | 98.02 |
| Min. voltage range input (V) | 150 |
| MPP min. voltage range input (V) | 150.00 |
| Min. temperature ambient (°C) | -40 |
| Interface 1 | RS485 |
| Interface 2 | Ethernet |
| Start input voltage (V) | 150 |
| Topology | transformerless |
| Manufacturer | Fronius |
|---|---|
| Manufacturer item name | Verto 30.0 |
| Intrastat country of origin | Austria |
| Intrastat product number (HS-code) | 85044084 |
| Length incl. packaging (cm) | 96.00 |
|---|---|
| Width incl. packaging (cm) | 76.00 |
| Height incl. packaging (cm) | 39.50 |
| Weight incl. packaging (Kg) | 53.800 |
| Amount per Pallet | 4 |
| Pal. dim. LxBxH (mm) | 1750x800x2136 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 865.00 |
|---|---|
| Width without packaging (mm) | 574.00 |
| Height without packaging (mm) | 279.00 |
| Weight without packaging (kg) | 41.750 |
| Warranty provider | Fronius |
|---|---|
| Product warranty (yr) | 2 |
| Standard product warranty (yr) | 5 + 5 Years Fronius Warranty Plus (After Free Registration) |
