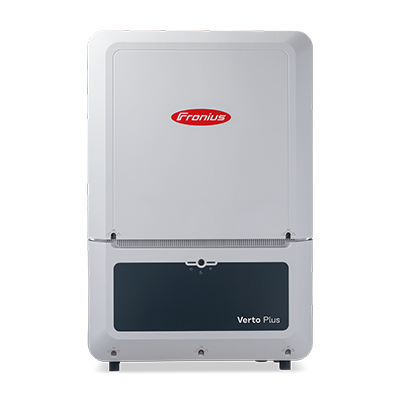

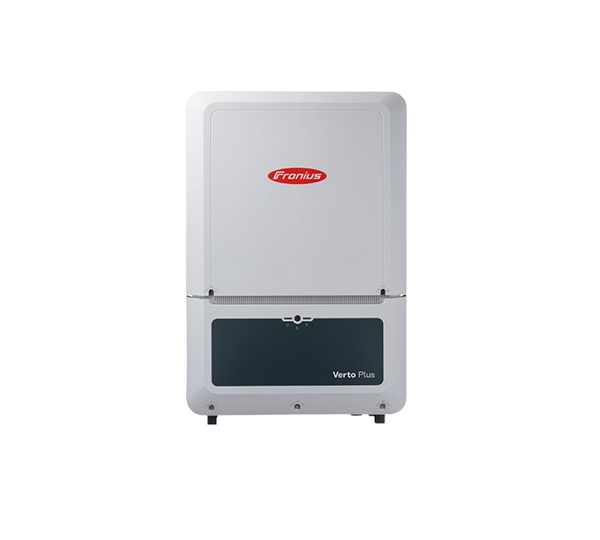

Verto 30.0 Plus SPD 1+2
Hybrid-WR, 3 MPPT, 3-ph, SPD DC Typ 1+2/AC Typ 2
Art. no.
6659336
Manufacturer No.
4,210,458
Product details
Product information "Verto 30.0 Plus SPD 1+2"
Technical details
| DC connector type | MC4 |
|---|---|
| Min. voltage range input (V) | 150 |
| Max. input current DC (A) total | 84.00 |
| Total number of string inputs | 6 |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Protection degree | IP66 |
| Start input voltage (V) | 150 |
| Max. AC power (kVA) | 29.90 |
| MPP max. voltage range input (V) | 870.00 |
| Number of independent MPPT (pcs) | 3 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Battery Connection | DC |
| Max. output current (A) | 50.50 |
| Display | w/o display |
| Battery voltage | High Voltage |
| Max. short circuit current per MPPT (A) | 50 |
| AC nominal power (kW) | 29.90 |
| Integrated DC switch | yes |
| Backup system light | yes with supply |
| MPP min. voltage range input (V) | 360.00 |
| Max. generator power DC (kWp) | 45.00 |
| Arc Fault Circuit Interrupter | yes |
| Max. input current per MPPT (A). | 28 |
| Max. short circuit current (A) total | 150.00 |
| Surge protection DC | type 1 and type 2 |
| Intrastat product number (HS-code) | 85044086 |
|---|---|
| Manufacturer item name | VERTO PLUS 30.0 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Weight incl. packaging (Kg) | 50.700 |
|---|---|
| Amount per Pallet | 4 |
| Width incl. packaging (cm) | 66.00 |
| Height incl. packaging (cm) | 40.20 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 95.50 |
| Height without packaging (mm) | 279.00 |
|---|---|
| Length without packaging (mm) | 865.00 |
| Weight without packaging (kg) | 43.000 |
| Width without packaging (mm) | 574.00 |
| Warranty provider | Fronius |
|---|
