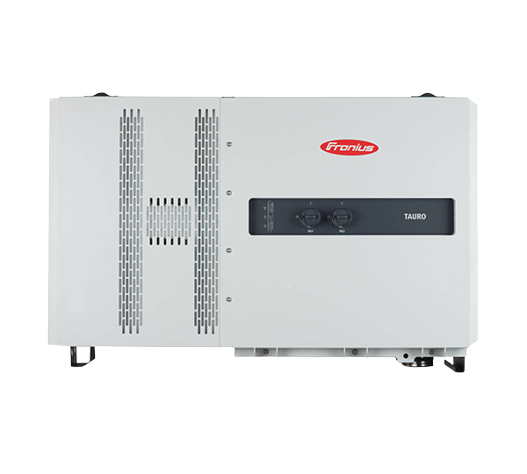

TAURO ECO 50-3-D
-
Art. no.
6643812
Manufacturer No.
4,210,306
Product details
Product information "TAURO ECO 50-3-D"
inverter, 50kW, 1MPPT, 3ph, 220V/380V, 230V/400V AC, 50/60Hz, w/DC switch, WLAN/LAN/Webserver, DC/AC SPD Type 1+2
Technical details
| Max. AC power (kVA) | 50.00 |
|---|---|
| Topology | transformerless |
| DC connector type | MC4 |
| Min. temperature ambient (°C) | -40 |
| MPP max. voltage range input (V) | 930.00 |
| Surge protection AC | type 1 and type 2 |
| Step-Up converter | no |
| Protection degree | IP65 |
| Max. input current per MPPT (A). | 87.5 |
| Max. input current DC (A) total | 87.50 |
| Arc Fault Circuit Interrupter | no |
| MPP min. voltage range input (V) | 580.00 |
| Start input voltage (V) | 650 |
| Max. input voltage DC (V) | 1000.00 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.50 |
| Max. short circuit current (A) total | 178.00 |
| Display | w/o display |
| Number of independent MPPT (pcs) | 1 |
| Degree of protection IP | IP65 |
| Max. output current (A) | 76.00 |
| Max. short circuit current per MPPT (A) | 178 |
| Min. voltage range input (V) | 580 |
| Integrated DC switch | yes |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| European efficiency (%) | 98.20 |
| AC nominal power (kW) | 50.00 |
| Max. generator power DC (kWp) | 75.00 |
| Surge protection DC | type 1 and type 2 |
| Total number of string inputs | 14 |
| Intrastat product number (HS-code) | 85044086 |
|---|---|
| Manufacturer item name | Tauro ECO 50-3-D |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Pal. dim. LxBxH (mm) | 1200x800x1850 |
|---|---|
| Weight incl. packaging (Kg) | 92.000 |
| Width incl. packaging (cm) | 80.00 |
| Length incl. packaging (cm) | 120.00 |
| Amount per Pallet | 3 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 300.00 |
| Height incl. packaging (cm) | 57.00 |
| Width without packaging (mm) | 1109.00 |
|---|---|
| Length without packaging (mm) | 346.00 |
| Weight without packaging (kg) | 74.000 |
| Height without packaging (mm) | 755.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
