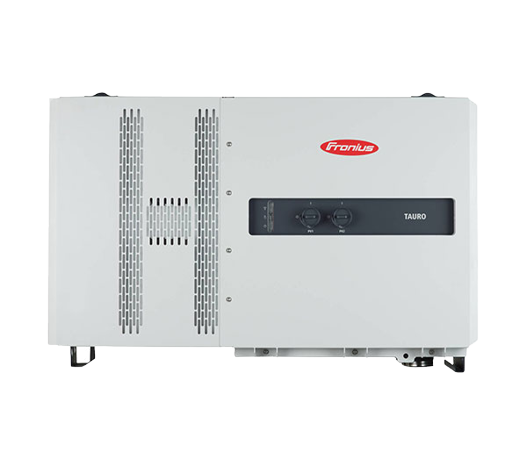

TAURO ECO 100-3-P
string inverter for central systems
Art. no.
6643817
Manufacturer No.
4,210,303
Product details
Product information "TAURO ECO 100-3-P"
***additional a string combiner box is needed***
Includes
- Type 1 + 2 surge protection (AC + DC)
- AC section with multicore connection (for easy installation of multicore cables)
If the device is registered within 30 months, the warranty can be extended by 3 years (total of 5 years, ‘Fronius Warranty Plus’, covering the costs of materials, service and transport).
Technical details
| Topology | transformerless |
|---|---|
| Min. temperature ambient (°C) | -40 |
| MPP max. voltage range input (V) | 930.00 |
| Surge protection AC | type 1 and type 2 |
| Step-Up converter | no |
| Protection degree | IP65 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Max. generator power DC (kWp) | 150.00 |
| MPP min. voltage range input (V) | 580.00 |
| Max. input current DC (A) total | 175.00 |
| Start input voltage (V) | 650 |
| Max. AC power (kVA) | 100.00 |
| Max. input voltage DC (V) | 1000.00 |
| Interface 1 | RS485 |
| Feed-in phases | 3 |
| Max. efficiency (%) | 98.50 |
| Max. output current (A) | 152.00 |
| Display | w/o display |
| Max. short circuit current per MPPT (A) | 250 |
| Number of independent MPPT (pcs) | 1 |
| Max. input current per MPPT (A). | 175 |
| DC connector type | screw-type terminal |
| Degree of protection IP | IP65 |
| Min. voltage range input (V) | 580 |
| AC nominal power (kW) | 100.00 |
| Integrated DC switch | yes |
| Max. short circuit current (A) total | 250.00 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| European efficiency (%) | 98.20 |
| Surge protection DC | type 1 and type 2 |
| Intrastat product number (HS-code) | 85044084 |
|---|---|
| Manufacturer item name | Tauro ECO 100-3-P |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Pal. dim. LxBxH (mm) | 1200x800x1850 |
|---|---|
| Width incl. packaging (cm) | 80.00 |
| Length incl. packaging (cm) | 120.00 |
| Amount per Pallet | 3 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 300.00 |
| Weight incl. packaging (Kg) | 121.000 |
| Height incl. packaging (cm) | 57.00 |
| Weight without packaging (kg) | 103.000 |
|---|---|
| Width without packaging (mm) | 1109.00 |
| Length without packaging (mm) | 345.00 |
| Height without packaging (mm) | 755.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 5 + 5 Years Fronius Warranty Plus (After Free Registration) |
