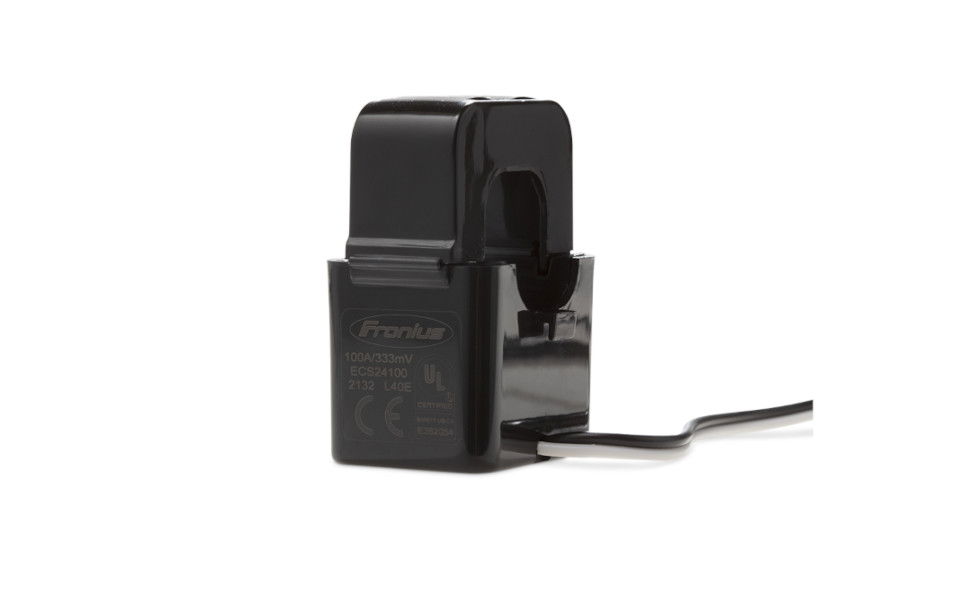

Smart Meter CT V 400A/333mV
Hinged measuring transformer for Smart Meter IP
Art. no.
6651538
Manufacturer No.
41,0010,0232
Product details
Product information "Smart Meter CT V 400A/333mV"
This article only includes a single measuring transformer. For 3-phase measurement, please adjust the quantity ordered.
If the grid connection exceeds the maximum value of 63 amps for direct measurement, special smart meters with measuring transformers are used. These are selected to match the grid connection and enable the usual accurate power recording. The hinged design with split-core enables quick and uncomplicated installation.
Product features Measuring transformer:
- Compatible with: Fronius Smart Meter IP
- Primary current: 400 A
- Secondary voltage: 333 mV
- Accuracy: Class 1
- Cable length: 1.0 m
- Inner diameter: 36 mm
- Dimensions: 81.5 x 57 x 38.4 mm (H x W x D)
Technical details
| Accuracy class | 1 |
|---|---|
| Type of construction | split core |
| Diameter (mm) | 36.00 |
| Primary current (A) | 400.00 |
| Manufacturer item name | CT V 400A\/333mV |
|---|---|
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85043200 |
| Manufacturer | Fronius |
| Pal. dim. LxBxH (mm) | 1200x800x1800 |
|---|---|
| Width incl. packaging (cm) | 6.50 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 0.320 |
| Length incl. packaging (cm) | 9.00 |
| Height incl. packaging (cm) | 8.00 |
| Amount per Pallet | 1920 |
| Height without packaging (mm) | 38.00 |
|---|---|
| Length without packaging (mm) | 82.00 |
| Weight without packaging (kg) | 0.292 |
| Width without packaging (mm) | 57.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
