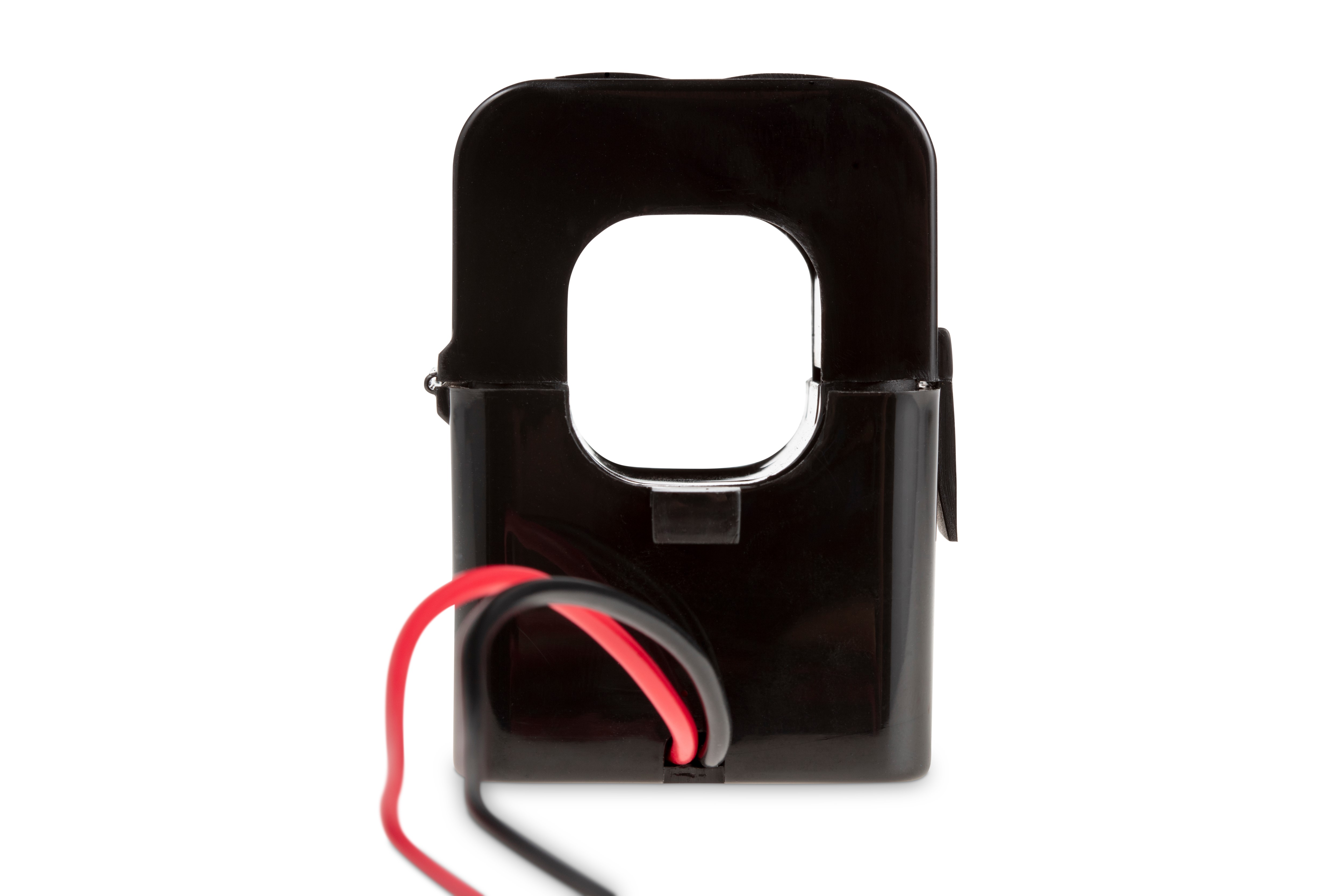

Smart Meter CT A 200A/5A
Hinged measuring transformer for Smart Meter CT A
Art. no.
6651144
Manufacturer No.
41,0010,0099
Product details
Product information "Smart Meter CT A 200A/5A"
Can only be used with the Fronius Smart Meter TS 5kA-3 and 50kA-3.
This article only includes a single measuring transformer. For 3-phase measurement, please adjust the quantity ordered.
If the grid connection exceeds the maximum value of 63 amps for direct measurement, special smart meters with measuring transformers are used. These are selected to match the grid connection and enable the usual accurate power recording. The hinged design with split-core enables quick and uncomplicated installation.
Product features Measuring transformer:
- Compatible with: Fronius Smart Meter TS 5kA-3 + 50kA-3
- Primary current: 200 A
- Secondary current: 5 A
- Accuracy: Class 1
- Cable length: 1.0 m
- Inner diameter: 24 mm
- Dimensions: 66.5 x 45 x 34.4 mm
Technical details
| Type of construction | split core |
|---|---|
| Diameter (mm) | 24.00 |
| Accuracy class | 1 |
| Primary current (A) | 200.00 |
| Secondary current (A) | 5.00 |
| Manufacturer | Fronius |
|---|---|
| Manufacturer item name | CT A 200A/5A |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85043200 |
| Length incl. packaging (cm) | 7.00 |
|---|---|
| Width incl. packaging (cm) | 9.00 |
| Height incl. packaging (cm) | 8.00 |
| Weight incl. packaging (Kg) | 0.230 |
| Amount per Pallet | 1920 |
| Pal. dim. LxBxH (mm) | 1200x800x1800 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 67.00 |
|---|---|
| Width without packaging (mm) | 45.00 |
| Height without packaging (mm) | 34.00 |
| Weight without packaging (kg) | 0.180 |
| Warranty provider | Fronius |
|---|---|
| Product warranty (yr) | 2 |
