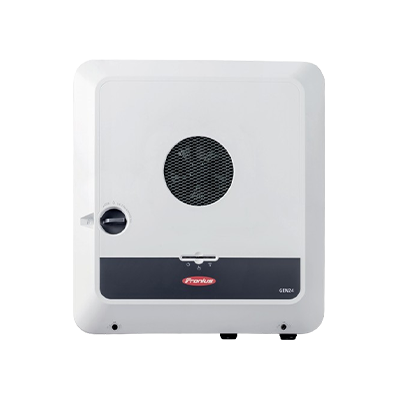

SYMO GEN24 5.0 SC
Hybrid inverter, 3-ph, DC switch
Art. no.
6660612
Manufacturer No.
4,210,192
Product details
Product information "SYMO GEN24 5.0 SC"
hybrid inverter, 5kW, 2MPPT, 3ph, 220V/380V, 230V/400V AC, 50/60Hz, w/out display, w/DC switch
5 + 5 Years Fronius Warranty Plus (After Free Registration)
Technical details
| Max. input current DC (A) total | 28.00 |
|---|---|
| Topology | transformerless |
| Max. short circuit current per MPPT (A) | 20.0/20.0 |
| Surge protection DC | no |
| Start input voltage (V) | 80 |
| Min. temperature ambient (°C) | -25 |
| Backup system light | no |
| Protection degree | IP66 |
| Interface 2 | RS485 |
| Number of independent MPPT (pcs) | 2 |
| Max. short circuit current (A) total | 40.00 |
| European efficiency (%) | 97.40 |
| Backup system full | no |
| Max. input voltage DC (V) | 1000.00 |
| Feed-in phases | 3 |
| Interface 1 | Ethernet |
| AC nominal power (kW) | 5.00 |
| Battery Connection | AC/DC |
| Max. input current per MPPT (A). | 14.0/14.0 |
| Surge protection AC | no |
| Display | w/o display |
| Decibel | 36 |
| MPP min. voltage range input (V) | 80.00 |
| DC connector type | spring-type terminal |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Min. voltage range input (V) | 80 |
| MPP max. voltage range input (V) | 800.00 |
| Offgrid usable | no |
| Total number of string inputs | 3 |
| Max. output current (A) | 7.60 |
| Contact ripple control receiver | yes |
| Grid protection | yes |
| Max. AC power (kVA) | 5.00 |
| Charging current (A) | 14.00 |
| Integrated AC switch | no |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Arc Fault Circuit Interrupter | yes |
| Max. generator power DC (kWp) | 7.50 |
| Charging voltage (V) | 160-700 V |
| Intrastat product number (HS-code) | 85044084 |
|---|---|
| Manufacturer item name | Symo GEN24 5.0 SC |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Length incl. packaging (cm) | 59.00 |
|---|---|
| Weight incl. packaging (Kg) | 19.500 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 26.50 |
| Amount per Pallet | 14 |
| Width incl. packaging (cm) | 56.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Length without packaging (mm) | 530.00 |
|---|---|
| Weight without packaging (kg) | 15.250 |
| Height without packaging (mm) | 165.00 |
| Width without packaging (mm) | 474.00 |
| Warranty provider | Fronius |
|---|
