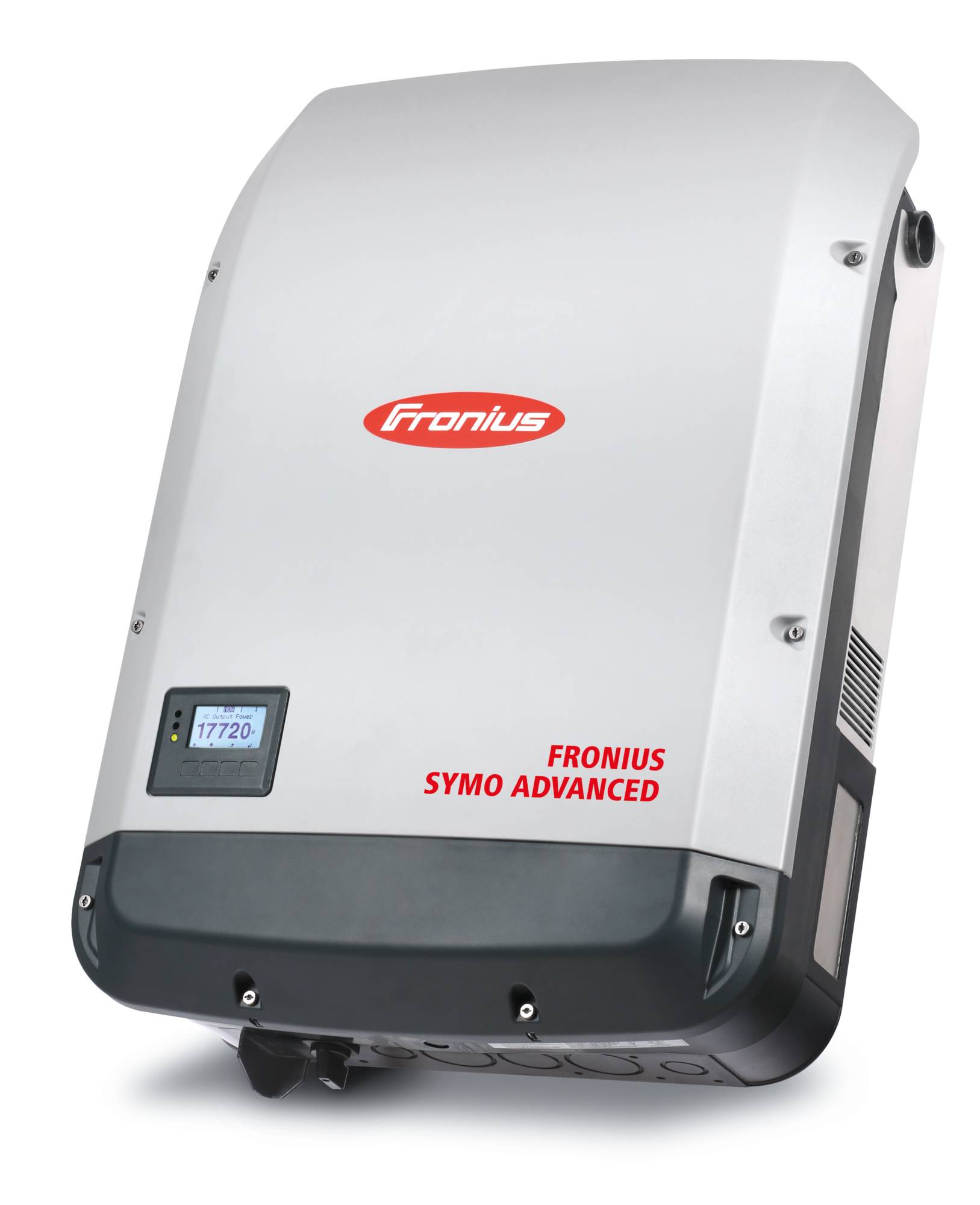

SYMO Advanced 10.0-3-M
-
Art. no.
6652861
Manufacturer No.
4,210,159
Product details
Product information "SYMO Advanced 10.0-3-M"
inverter, 10kW, 2MPPT, 3ph, 220V/380V, 230V/400V AC, 50/60Hz, w/display, w/DC switch, w/AFCI, WLAN/LAN/Webserver
5 + 5 Years Fronius Warranty Plus (After Free Registration)
Technical details
| Topology | transformerless |
|---|---|
| Max. input current per MPPT (A). | 27,0/16,5 |
| Total number of string inputs | 6 |
| Interface 2 | W-Lan |
| Min. voltage range input (V) | 200 |
| UI curve diagnosis | yes |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 10.00 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. output current (A) | 15.20 |
| European efficiency (%) | 97.40 |
| Max. input voltage DC (V) | 1000.00 |
| Max. AC power (kVA) | 10.00 |
| Degree of protection IP | IP66 |
| Feed-in phases | 3 |
| Interface 1 | Ethernet |
| Step-Up converter | yes |
| Max. generator power DC (kWp) | 15.00 |
| Max. short circuit current per MPPT (A) | 55,7/34,0 |
| DC connector type | screw-type terminal |
| Max. short circuit current (A) total | 89.70 |
| Max. efficiency (%) | 98.00 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 800.00 |
| Contact ripple control receiver | yes |
| Arc Fault Circuit Interrupter | yes |
| Max. input current DC (A) total | 43.50 |
| Intrastat product number (HS-code) | 85044084 |
|---|---|
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Manufacturer item name | Symo Advanced 10.0-3-M |
| Pal. dim. LxBxH (mm) | 1200x800x1520 |
|---|---|
| Width incl. packaging (cm) | 59.00 |
| Weight incl. packaging (Kg) | 39.970 |
| Pal. weight (kg) | 390.00 |
| Height incl. packaging (cm) | 34.00 |
| Pack. material | cardboard box |
| Amount per Pallet | 8 |
| Length incl. packaging (cm) | 79.00 |
| Length without packaging (mm) | 725.00 |
|---|---|
| Width without packaging (mm) | 510.00 |
| Weight without packaging (kg) | 34.800 |
| Height without packaging (mm) | 225.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 5 + 5 Years Fronius Warranty Plus (After Free Registration) |
